On 14/11/2025 at 21:34, Steve Lawson said:

here's the latest version of my pedalboard, all inside the MOD DuoX



Every purple line is an audio path, and every blue one is MIDI.



It's one in (though it could be stereo) 6 out (three stereo pairs).



The parallel audio paths include an ambient path that's all reverb/delay, one that's all pitch-to-MIDI, and one that's glitchy weird sh*t.



it's all controlled via a Keith McMillen Softstep and Quneo, the MOD Footswitch and two Dunlop mini expression pedals. The only additional outboard at the moment is a Dunlop volume pedal, a Dunlop Wah (alternate between the mini bass wah and the Justin Chancellor), and a Nordstrand Starlifter.





Dear lord, what's the latency on that?!

[MichaelDean]

6 minutes ago, basexperience said:

Nice solution! Like the patchy - I'm guessing that's your own design? I just made one for my filter board: Gave me an appreciation for guys like Bright Onion - enjoyed the process, but weighing up the cost their service is a damn good one.

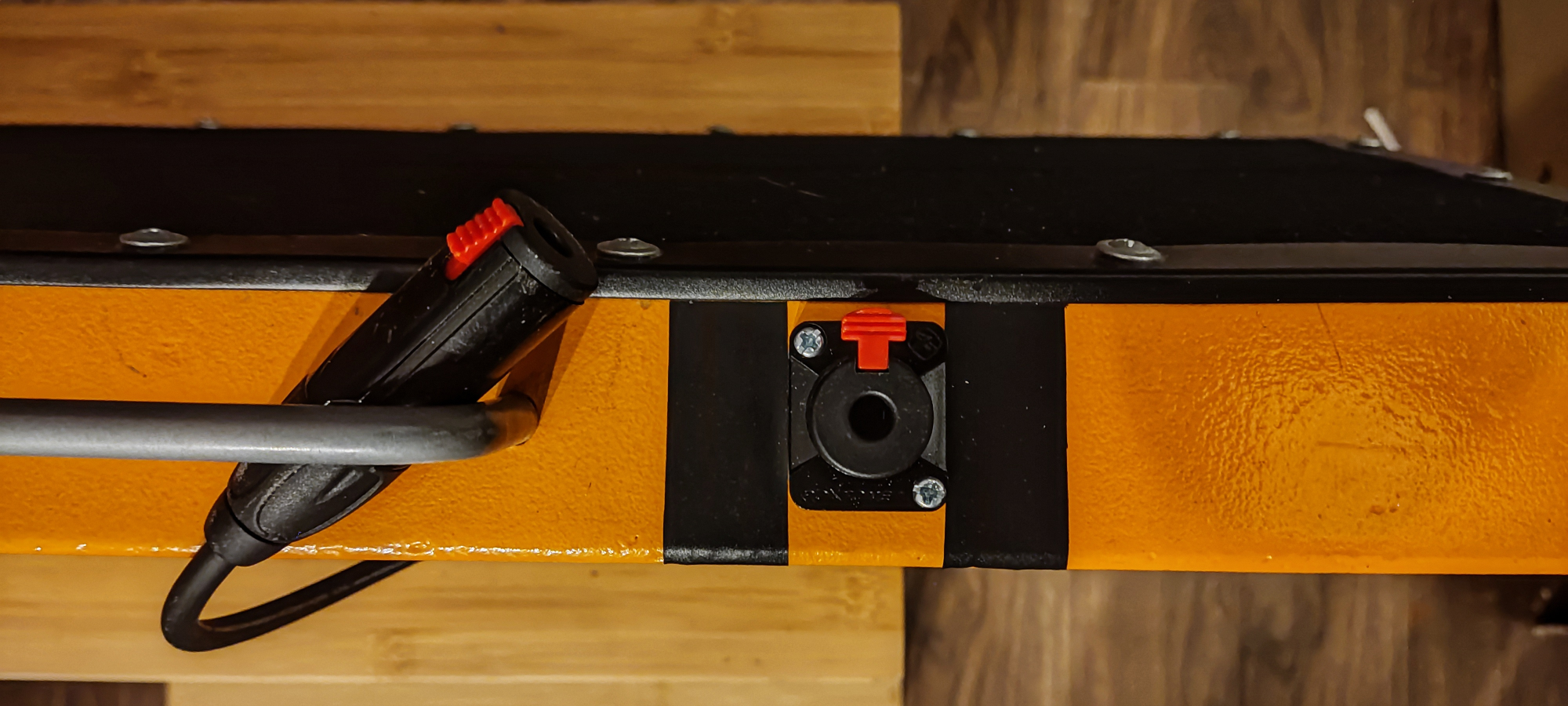

Thanks! Yeah, just got a small metal enclosure drilled and wired it. Stereo jacks on the inside so I can be flexible on ins/outs. I also appreciate their efforts. I got it a bit wrong as the sockets broke contact on one of the sides when you put the jack in and had to re-do half of the connections 🙄

[Steve Lawson]

2 hours ago, basexperience said:

Dear lord, what's the latency on that?!

approx 10ms, including the interface. Easily manageable
