Bass not cutting through? Loudness could be the answer

[Phil Starr]



Anybody listening to music in the 80's will remember the loudness control on their cheap hi-fi. The magic button that made our music come to life, they are still around often with exotic names like Psycho Acoustic boost.  The loudness control worked because it exploited a couple of simple bits of human biology. The same bits of biology that make any bass amp or speaker with a mid scoop fly out of the sales room. It's the sound we all love practicing at home but which sounds s**t when we take it to a gig.



So to understand it on the graph a couple of simple bits of physics and then some biology which will hopefully help people with their eq.

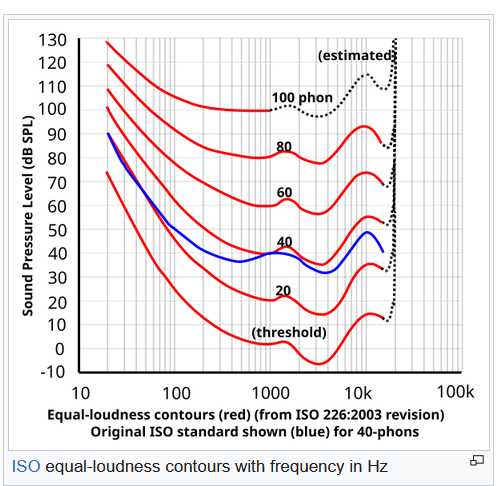

So Physics first: sound pressure levels are measured in decibels and are a measure of the sound's energy, how much the air is moving, kind of. It's what is measured by a sound meter and we use it as a measure of sound volume but it isn't reall a measure of how loud something is. Loudness is measured in Phons. The Phons are only the same as the decibels at one frequency 1,000Hz which is right in the middle of the mid range, sort of. Sounds at low frequencies or very high frequencies just aren't as loud for us as at 1,000Hz but at 3,000Hz they sound even louder. If you want hou can play with this online Here  To understand the graph look at the 80Phon line; at 1000Hz it is 80db. Run left to 100Hz and it is 90db. To sound the same volume you need an extra 10db which is 10x the power from your amp/speaker run up to 7kHz and it is again 90db to get the same volume. The graph kind of shows how you would have to set the graphic to get the same perceived volume at 80 phons. As a bassist though the thing to notice is that the settings at low sound levels are different to those at the highest levels. At the quietest you'd need 70db of boost to hear any 20Hz sound at all. At 100phon you'd hear it easily and only need 30db boost for it to be as loud as it is at 100hz.



This is where biology comes in, our ears and brain work together to give the most useful sounds. it's a really clever and subtle system of signal enhancement with genuine survival value. There are lots of quiet bass sounds our body makes, the rumbling of our gut and the grinding of our bones as we move. Imagine moving around the savannah's with the sound of our last meal drowning out the sound of something that want's us to be it's next meal  The sounds we hear best are the dip in the curve 2-5kHz which is vital for understanding speech and screams and cries. Loud bass we need, it means something exciting and dangerous is about to happen, a large animal, falling rocks or something powerful and dangerous. The reason we like a mid scoop becomes apparent. by having the mids lower it sounds like the bass and treble are louder and you get the illusion of your bass coming from a much louder amp. When you turn the amp up to gig volumes you need a lot less boost to bass and treble to get the sound you crave. Loud bass is exciting, an adrenaline rush.



So finally we get to bass guitar. Average gig levels are around 100db (as measured on-stage at Glastonbury a few years ago). 80phon is more like pretty loud music in a domestic setting and for sake of argument I'll say close to practice levels. From the graph you'd need around 15db boost to get 100phon at 50Hz and at 80phon you'd need 20db of boost for the same effect. That's 5db difference in the bass between gig and practice levels compared to the mids. So to take your carefully set up tone for the gig you need to turn your bass down 5db at 50hz or the mids up by the same amount to maintain your tone. Given that the mid scoop is often around 5-6db you've pretty much always got to lose it before you play at gig levels.



This isn't the only thing you have to contend with at gigs, room acoustics and the other band members come into the equation too but you have to expect to re-eq when you turn up the volume for a gig to balance your bass and midrange. You'd have to do it for the highs as well except that there is very little hf coming out of your pickups. Cymbals through a powerful PA though......definitely the wrong sort of adrenaline!
