neepheid Posted May 20, 2008 Author Share Posted May 20, 2008 Haven't forgotten about this - the neck itself is done (as in no more layers - lacquer hardening now), I've masked off the headstock sides and I'm just basically going to empty the can onto the face of it now to bury the logo in lacquer. Got a couple of layers done yesterday evening. Quote Link to comment Share on other sites More sharing options...
neepheid Posted May 22, 2008 Author Share Posted May 22, 2008 As you may have noticed me babbling about in the Tech forum, I've been removing the three broken pickguard screws in the body of the Hagstrom. Got two, missed one. Will have another go at it soon. Quote Link to comment Share on other sites More sharing options...
budget bassist Posted May 22, 2008 Share Posted May 22, 2008 Just out of interest, how did you get the screws out? Quote Link to comment Share on other sites More sharing options...
neepheid Posted May 22, 2008 Author Share Posted May 22, 2008 [quote name='budget bassist' post='204381' date='May 22 2008, 04:07 PM']Just out of interest, how did you get the screws out?[/quote] This only worked for the ones which were broken below the surface: drilled 'em out with a hand drill and a 3mm bit. The drill followed the existing hole then had no choice but hit the centre of the screw remnant and drill out the remainder. Got wood dust and metal filings when I removed the drill. Then glued in a 3mm dowel and will cut, sand flush and redrill a pilot hole. The one that was flush with the top, I tried cutting a slot in the top of it, but that didn't work, so I tried drilling out as well, but the drill slipped off and drilled past the screw. Filled that hole as above, will try drilling a tiny pilot hole in the middle of the screw then drilling it all out with the 3mm bit. Quote Link to comment Share on other sites More sharing options...
budget bassist Posted May 22, 2008 Share Posted May 22, 2008 Ah right, thanks, i'm just wondering if the first method will be particularly stable for a bridge screw Quote Link to comment Share on other sites More sharing options...
neepheid Posted May 22, 2008 Author Share Posted May 22, 2008 [quote name='budget bassist' post='204435' date='May 22 2008, 05:25 PM']Ah right, thanks, i'm just wondering if the first method will be particularly stable for a bridge screw[/quote] It ought to be, as long as you use a hardwood dowel and not pine or similar. Wood glue is stronger than wood, so it ought to take the strain. Plus it's not on its own, the load is spread over several points, so it's unlikely to go anywhere. Quote Link to comment Share on other sites More sharing options...
neepheid Posted May 27, 2008 Author Share Posted May 27, 2008 Wheeee, lacquer drying is fun. Hello from the workshop. I'm going to try and get 4 layers done this evening. At least I can get some bass practice in while I'm waiting. Got to love the Tascam MP3 bass trainer. Quote Link to comment Share on other sites More sharing options...
7string Posted May 27, 2008 Share Posted May 27, 2008 I suppose watching lacquer dry can't be that much fun..... Quote Link to comment Share on other sites More sharing options...

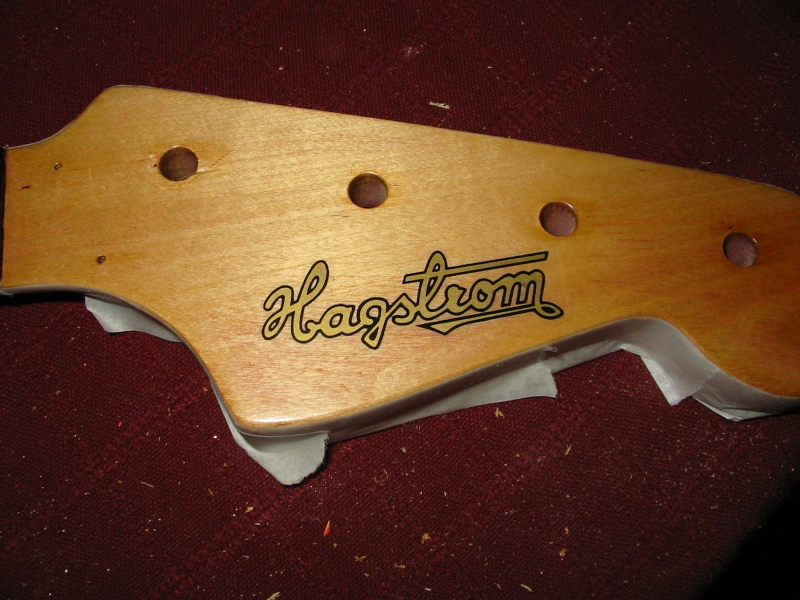

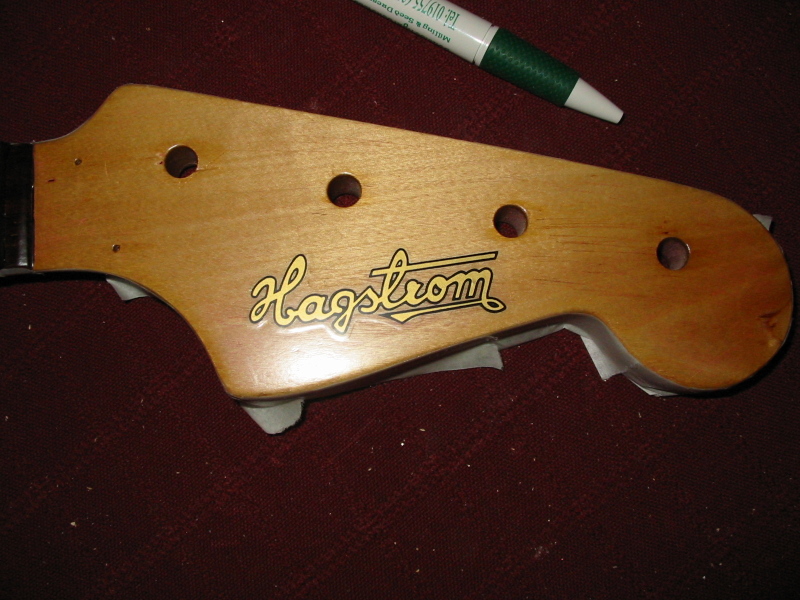

neepheid Posted May 27, 2008 Author Share Posted May 27, 2008 Not really. However, progress continues: You can see the hump caused by the logo. A few more layers then I'll have a go at levelling it somewhat. Quote Link to comment Share on other sites More sharing options...
neepheid Posted May 31, 2008 Author Share Posted May 31, 2008 Quick update: all screws now present and correct in the pickguard. The old screws are soft as anything, no wonder there were broken ones to drill out. I broke one myself when I was testing pilot hole diameters. Lucky I had a spare, eh? Quote Link to comment Share on other sites More sharing options...

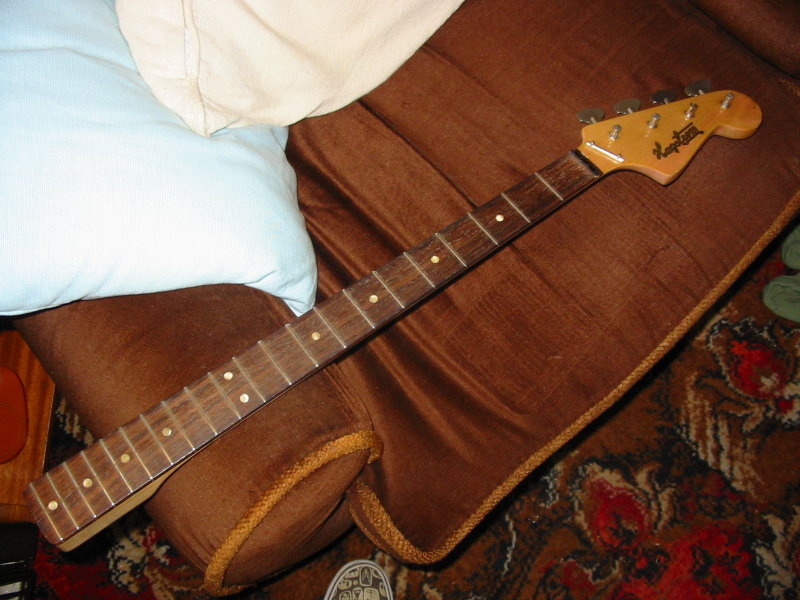

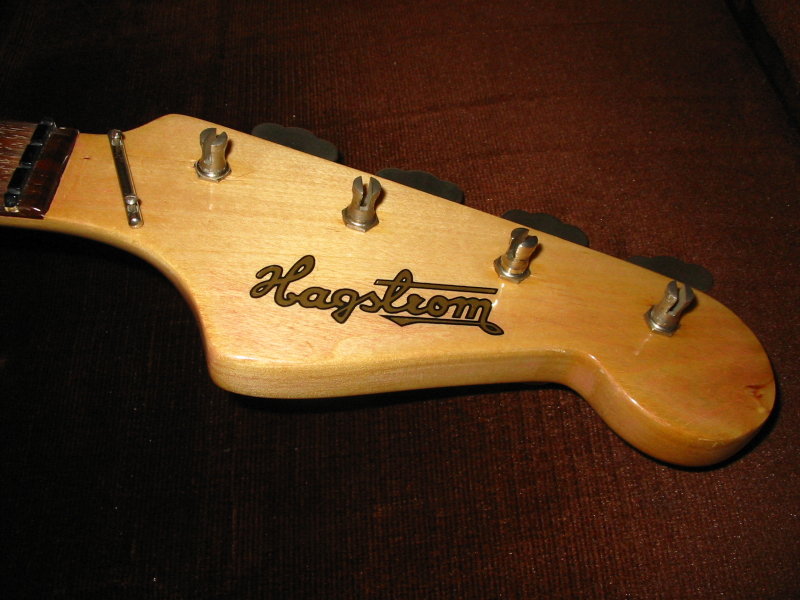

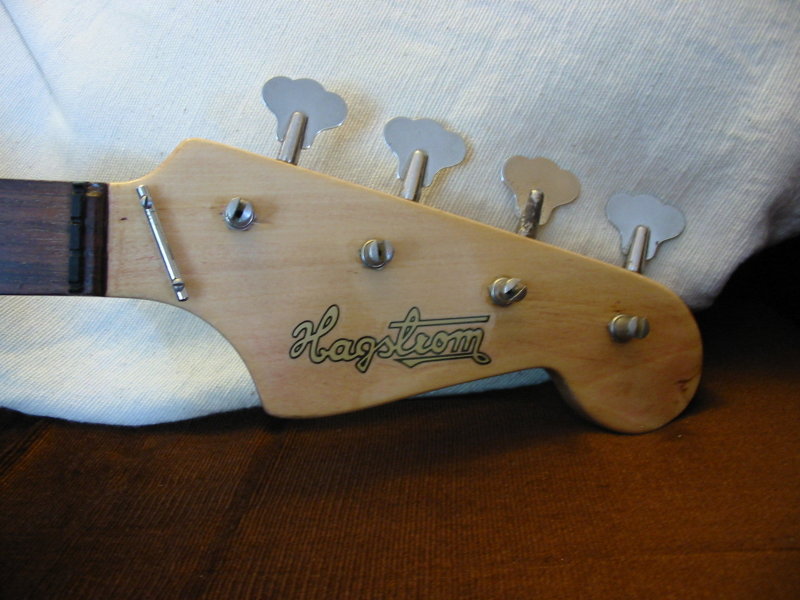

neepheid Posted July 7, 2008 Author Share Posted July 7, 2008 Thought I'd forgotten about this? The owner must do Therefore I'm pleased to report that the neck is complete! Now I need to get to work on the body. Quote Link to comment Share on other sites More sharing options...
mathewsanchez Posted July 7, 2008 Share Posted July 7, 2008 Here's a similar one on ebay: [url="http://cgi.ebay.co.uk/1964-Hagstrom-Futurama-Bass_W0QQitemZ120278538838QQihZ002QQcategoryZ4713QQssPageNameZWDVWQQrdZ1QQcmdZViewItem"]http://cgi.ebay.co.uk/1964-Hagstrom-Futura...1QQcmdZViewItem[/url] Quote Link to comment Share on other sites More sharing options...
neepheid Posted July 8, 2008 Author Share Posted July 8, 2008 [quote name='mathewsanchez' post='234559' date='Jul 7 2008, 10:24 PM']Here's a similar one on ebay: [url="http://cgi.ebay.co.uk/1964-Hagstrom-Futurama-Bass_W0QQitemZ120278538838QQihZ002QQcategoryZ4713QQssPageNameZWDVWQQrdZ1QQcmdZViewItem"]http://cgi.ebay.co.uk/1964-Hagstrom-Futura...1QQcmdZViewItem[/url][/quote] Yeah, I did spy that one - it's even older than the one I'm sorting out. Quote Link to comment Share on other sites More sharing options...
budget bassist Posted July 18, 2008 Share Posted July 18, 2008 Good to see it's coming along nicely! Quote Link to comment Share on other sites More sharing options...
neepheid Posted August 14, 2008 Author Share Posted August 14, 2008 Quick update: obtained some grain filler so I can finally get started on the body refinish. I have no idea if the grain needs filling or not (because I have no idea what wood the body is made of), but I'm not taking any chances. I'm guessing that if filler isn't needed then the stuff just won't sink in to the grain that much. Better than screwing a stick to the body, I've got an old, badly varnished Hagstrom neck that I can use. I'll mask the fingerboard, but it doesn't matter too much if lacquer gets on the back, it needs stripped anyway. I'll be able to hang it from one of the tuner holes too when drying - bonus Quote Link to comment Share on other sites More sharing options...
TheRinser Posted August 17, 2008 Share Posted August 17, 2008 Only just noticed this, very impressive stuff! Consider me subscribed! Also, how did you get rid of the 'hump' around the decal on the headstock? Cheers, Tom Quote Link to comment Share on other sites More sharing options...
neepheid Posted August 17, 2008 Author Share Posted August 17, 2008 [quote name='TheRinser' post='264066' date='Aug 17 2008, 06:34 PM']Only just noticed this, very impressive stuff! Consider me subscribed! Also, how did you get rid of the 'hump' around the decal on the headstock? Cheers, Tom[/quote] I didn't entirely, the idea was basically to spray layer after layer on top of the whole thing then cut back over the decal. I got it down a little then I chickened out (Hagstrom decals not being that easy to obtain ). So there is a little hump, but it isn't as bad as it was. The originals used to get quite pronounced edges to them anyway, so I guess I'm being period correct through the back door. That's my story and I'm sticking to it... Quote Link to comment Share on other sites More sharing options...
cd_david Posted September 13, 2008 Share Posted September 13, 2008 Hi Thought id post the renovated Hii guitar now finished thanks to your help with the decal and tremelo screw. Thanks Dave Quote Link to comment Share on other sites More sharing options...
neepheid Posted September 13, 2008 Author Share Posted September 13, 2008 [quote name='cd_david' post='283240' date='Sep 13 2008, 04:37 PM']Hi Thought id post the renovated Hii guitar now finished thanks to your help with the decal and tremelo screw. Thanks Dave[/quote] Stunning job, I'm doing mine white too, it's nice to see basically how it'll end up. When I saw someone posted in here, I was expecting a kick up the backside I've been kinda busy recently because of helping out at a music festival, taken on a few little jobs and I'm organising my wedding. Stressful times! Gah, I wish even more I was getting to keep the Hagstrom Quote Link to comment Share on other sites More sharing options...
budget bassist Posted September 13, 2008 Share Posted September 13, 2008 *kicks up the backside* get on with it!! Haha only joking, but i can't wait to see how it (and all your other ongoing projects) turns out! Quote Link to comment Share on other sites More sharing options...
steve Posted September 18, 2008 Share Posted September 18, 2008 Good work NH, this seems like quite an involved job I would've bought one of these of ebay recently if I didn't have other projects waiting, I think they have a cool vibe going on. Quote Link to comment Share on other sites More sharing options...
tauzero Posted September 19, 2008 Share Posted September 19, 2008 [quote name='neepheid' post='283272' date='Sep 13 2008, 05:49 PM']Gah, I wish even more I was getting to keep the Hagstrom [/quote] Could you do anything with the donor Hagstrom you got? Quote Link to comment Share on other sites More sharing options...
steve Posted September 19, 2008 Share Posted September 19, 2008 [quote name='tauzero' post='287095' date='Sep 19 2008, 10:01 AM']Could you do anything with the donor Hagstrom you got?[/quote] maybe sell it to me? Quote Link to comment Share on other sites More sharing options...
neepheid Posted February 13, 2009 Author Share Posted February 13, 2009 Quick update - seeing as I have no idea what wood the body is made of, I've just filled the grain and it's drying overnight. As soon as it gets a little warmer (allegedly happening soon) I'm going to start spraying. No point in pics, it doesn't look much different. Wood looked a little darker when the grain filler went on, but when it's dry it'll probably look much and such the same. Quote Link to comment Share on other sites More sharing options...
neepheid Posted April 2, 2009 Author Share Posted April 2, 2009 Breaking news: it lives! More soon. Quote Link to comment Share on other sites More sharing options...
