Magnetic Fields

[Woodinblack]

Not refering to the Jean Michelle Jarre album!



At the bass bash I brought some magnetic field paper to see what was under the pickups of various devices. Most are pretty obvious what you are going to see, but here are some notable ones. I found it interesting anyway

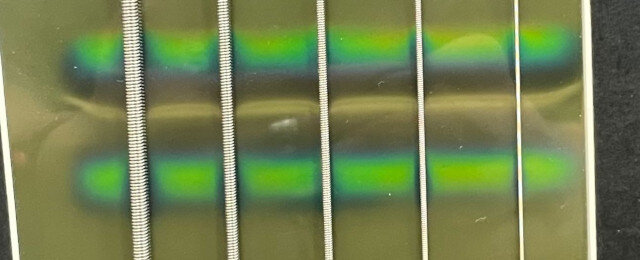

As a reference, this is a standard bart soapbar, twin coil humbucker, looks like you would expect

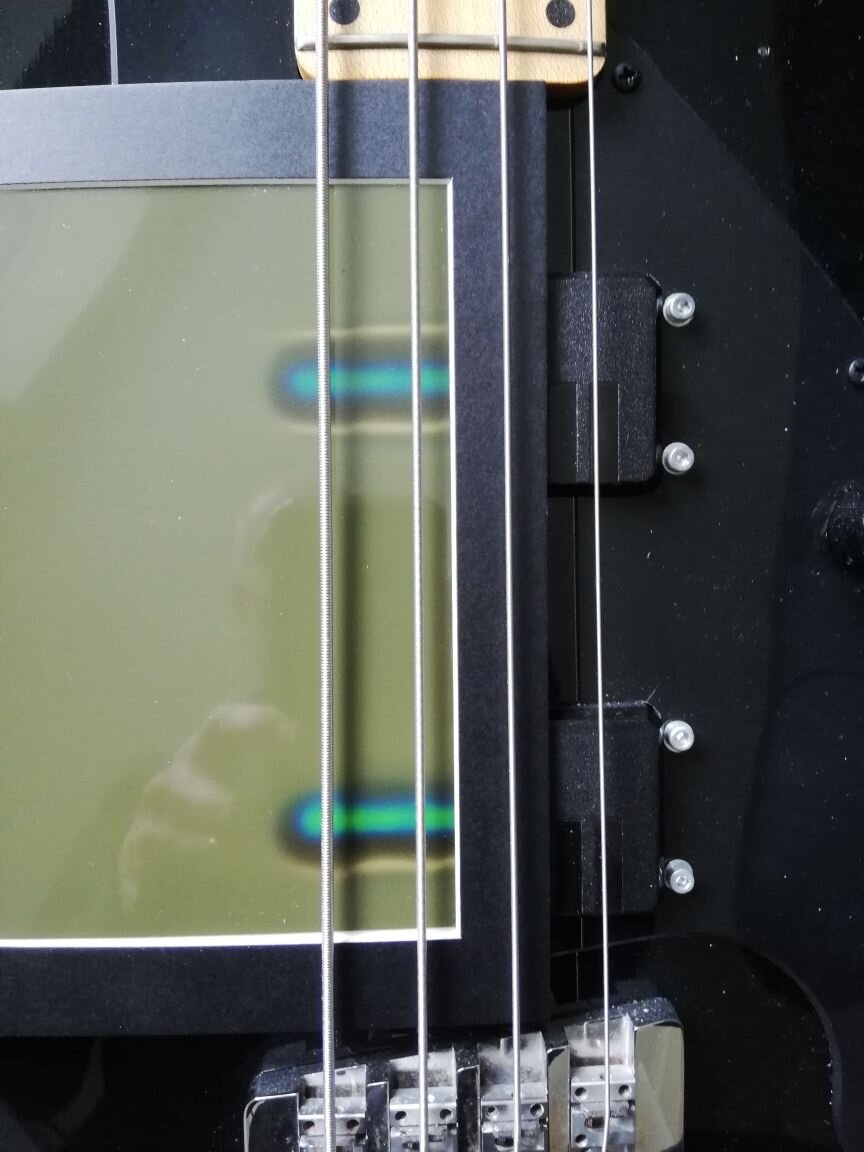

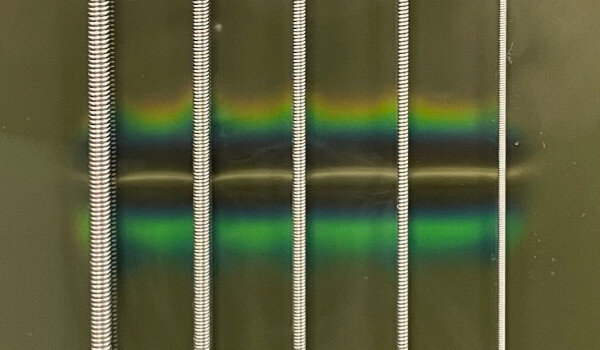

This is a high gain rickenbacker 4004 pickup, obviously originally designed to go over 4 strings, but covers 5 nicely

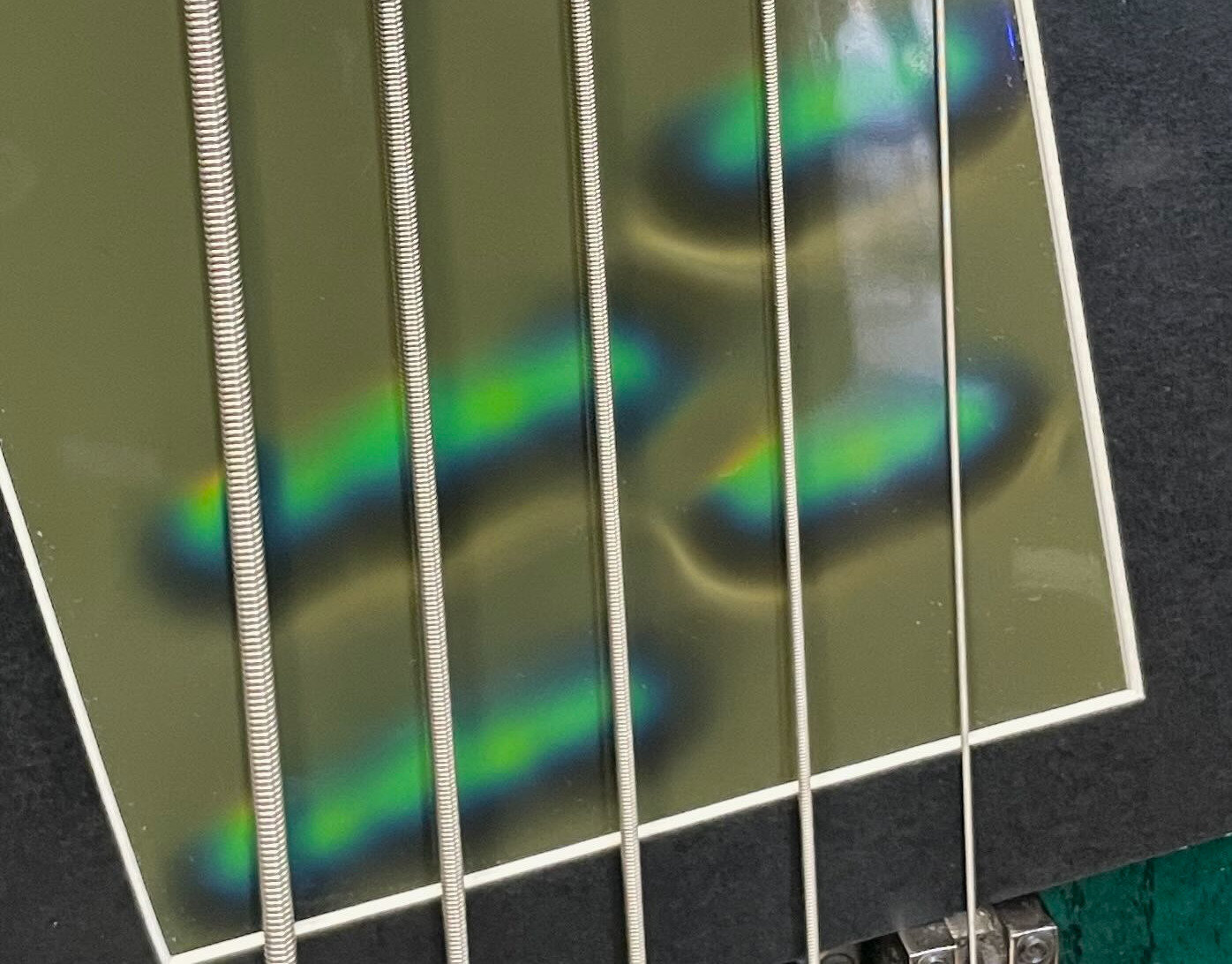

A dingwall twin pickup - goes with the line of the pickups, with the high notes further out

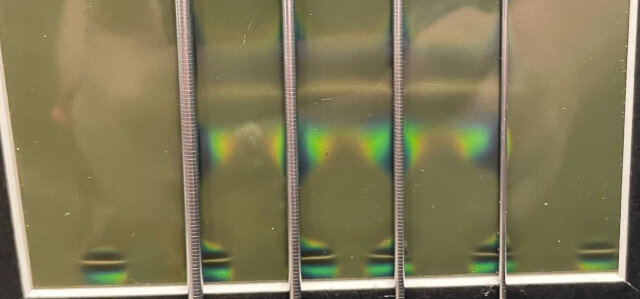

Here is a normal single coil and what I assume is a GK3B (although obviously could be a GK2-b

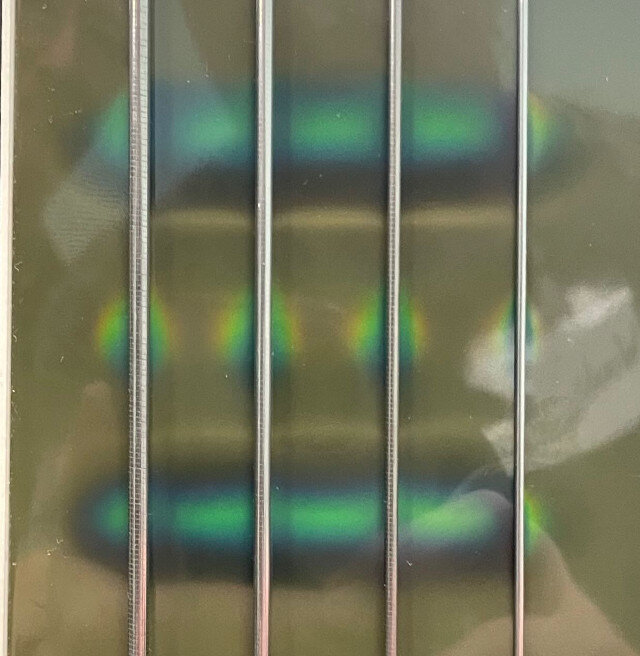

This is a mudbucker on a homemade Gibson Les Paul bass clone - huge area covered and probably explains the name!

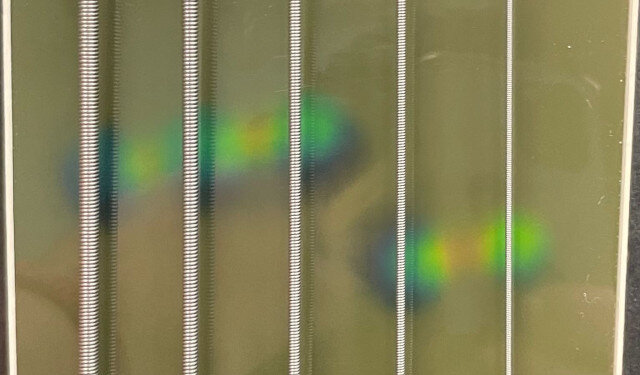

This is a sandberg pickup in a soapbar case - looks similar to the dingwall pickups mostly - this pickup was lined horizontally, so the pattern is just how it is in the case

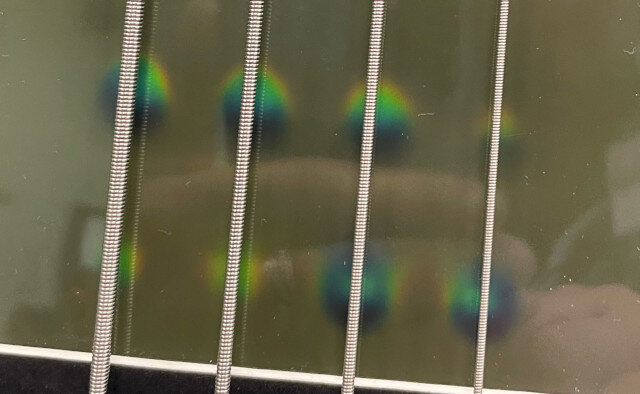

A fender (actually squier) metal covered split bass pickup - I looked at two of these, and the pattern is the same, the D string has most of the magnets!

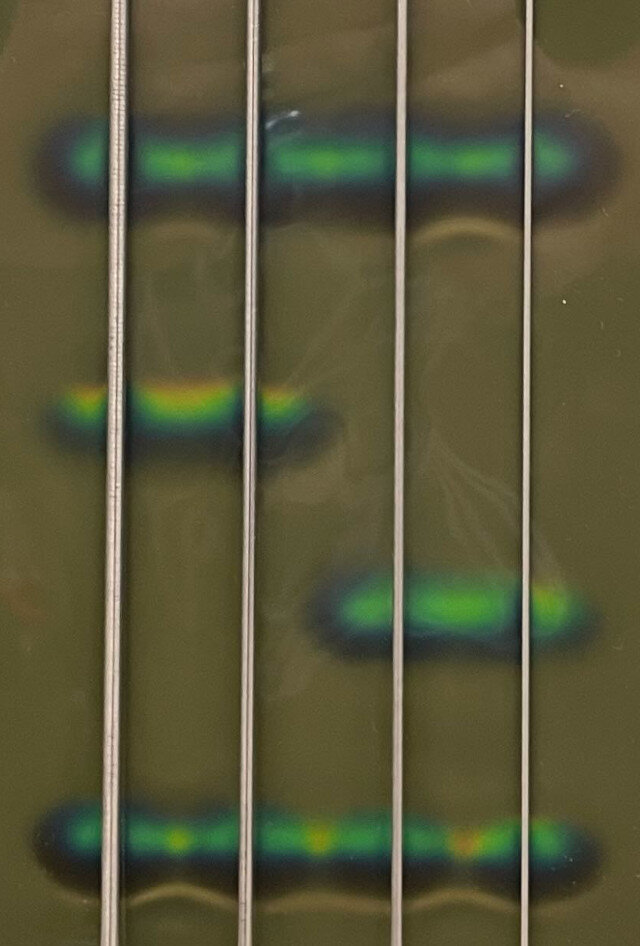

On the same table - two single coils and a P pickup - no surprises but very well balanced

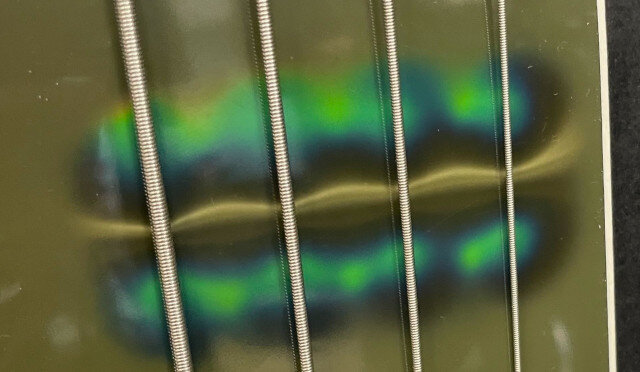

Finally a G&L MDF pickup in a L2000 - as you can see the magnetic field is so high its bending reality around it. And maybe even gravity.



Interestingly I wanted to put the Rickenbacker 4003 pickup here, but pressing hard against the pickup I can just make out the dots on the pole pieces, but it is so weak it is very hard to see.
