Lipstick on a Ppppp P-bass

[kodiakblair]

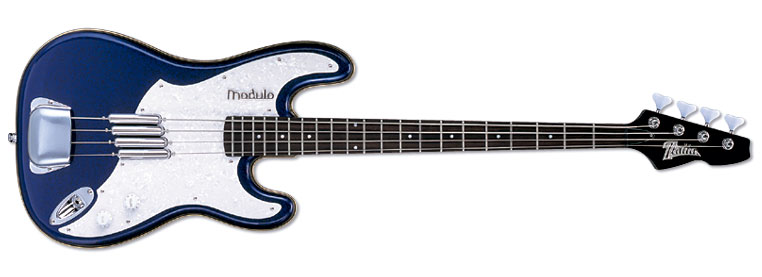

Given my taste in P-basses runs counter to the norm it's no surprise those Italia basses from a few years back caught my eye.







Pity I never got my hands on one and the ones I've saw recently have daft prices😕



When faced with daft prices I went with my default setting of "I can do that" 😀

[kodiakblair]

Had the main elements for the bass at hand.



A Paulownia P-bass body and maple neck purchased from @tom1946 a year maybe 2 years back.



The body is nice and light plus Paulownia is dead easy to work with 👍





All I had to to was copy the scratch plate, cut out the pickups and a wee bit router work to the body.

[kodiakblair]

Main purchase was lipstick pickups.



I had 3 in the drawer for an un-yet started Dano build. Buying a 4th was complicated, the 3 Dano lipsticks came from Ali-Ex several years back so the chances of finding a matching 4th were slim. I also had a slight concern regards polarity.



Artec came to the rescue by selling Strat lipstick pickups where the middle pickup was RWRP. 2 Bridge and 2 Middle were ordered.

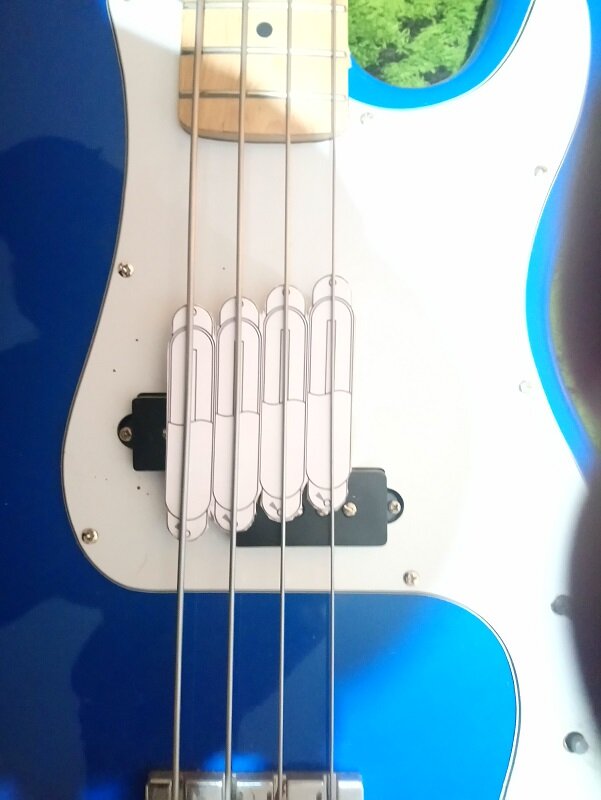

A wee play-about in Photoshop showed me just placing them next to each other wasn't going to work.





What I really needed was 52mm between the top adjusting screws and 54mm between the bottom screws.



Drawing on paper followed while I waited on the pearloid scratch plate material arriving.

[Richard R]

I've not seen that before, looks rather good. Waiting with interest....

[kodiakblair]

Pearloid material arrived and I got the jitters 😀



Get one chance cutting plastic, likelihood of failure was high 🙁





Thought about ordering up a blank scratchplate, having a custom one cut, getting a pickup template made; anything to avoid cutting plastic 😁

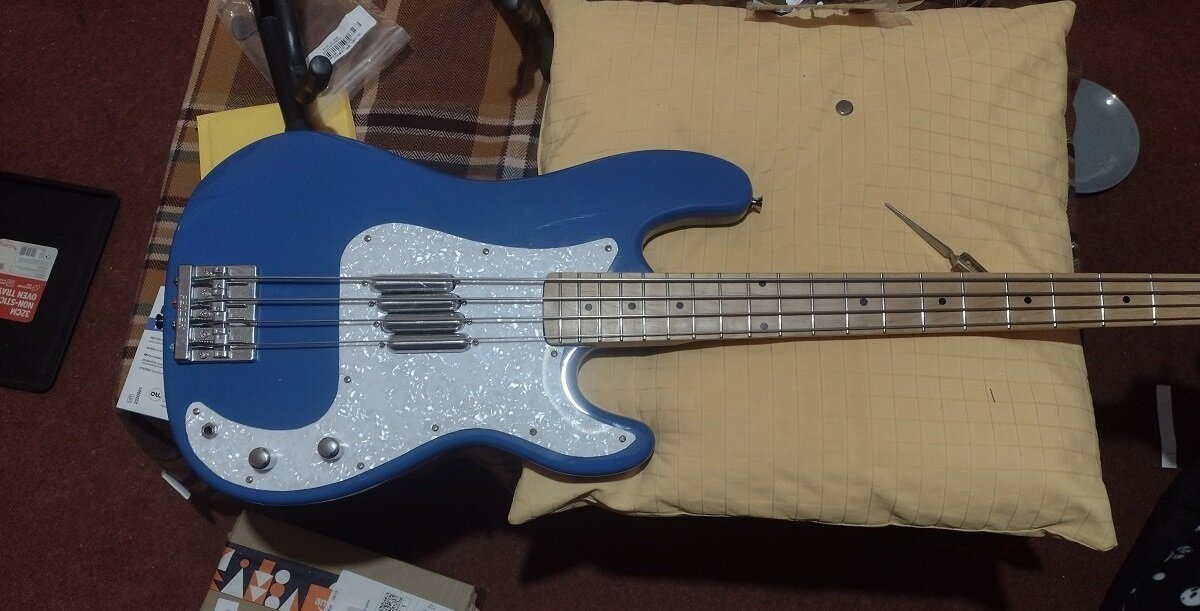

Stern talking to and I came to my senses. Scratch plate cut 😀
