51 P Bass Cavity (Telecaster)

[Brian18242]

Question: Do you think there would be enough room on a standard fender 51 P bass cavity (Control plate) for an active EMG P pickup with battery? Not looking to make any body modification to fit the battery but honestly not sure it would fit. Can't find any info online.

[Beedster]

If you post the dimensions of the circuit and battery I can tell you for sure, but I suspect the answer is no

[kevin_lindsay]

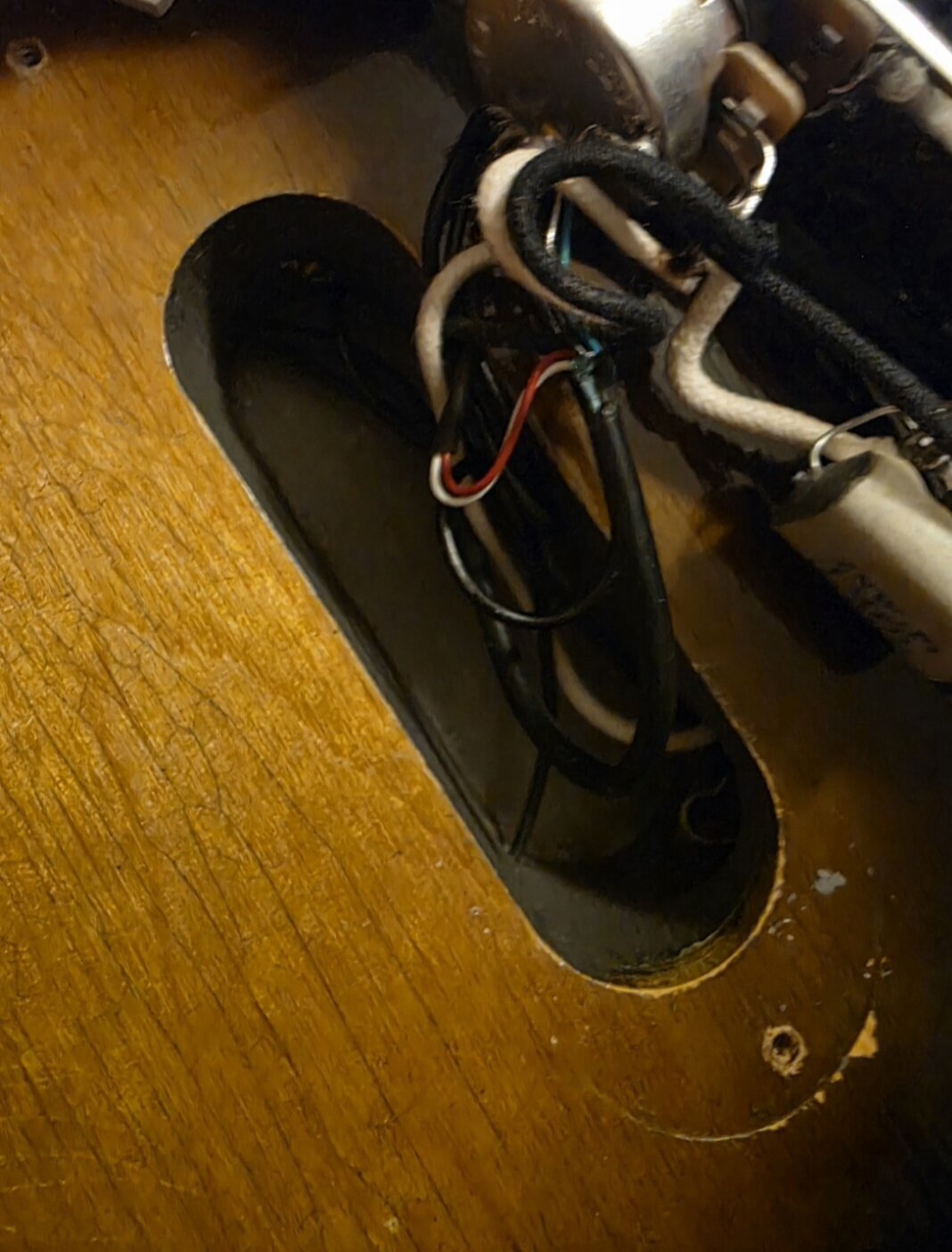

Let me take some pics of my 50s single coil P-Bass control cavity to see if there is room

[kevin_lindsay]

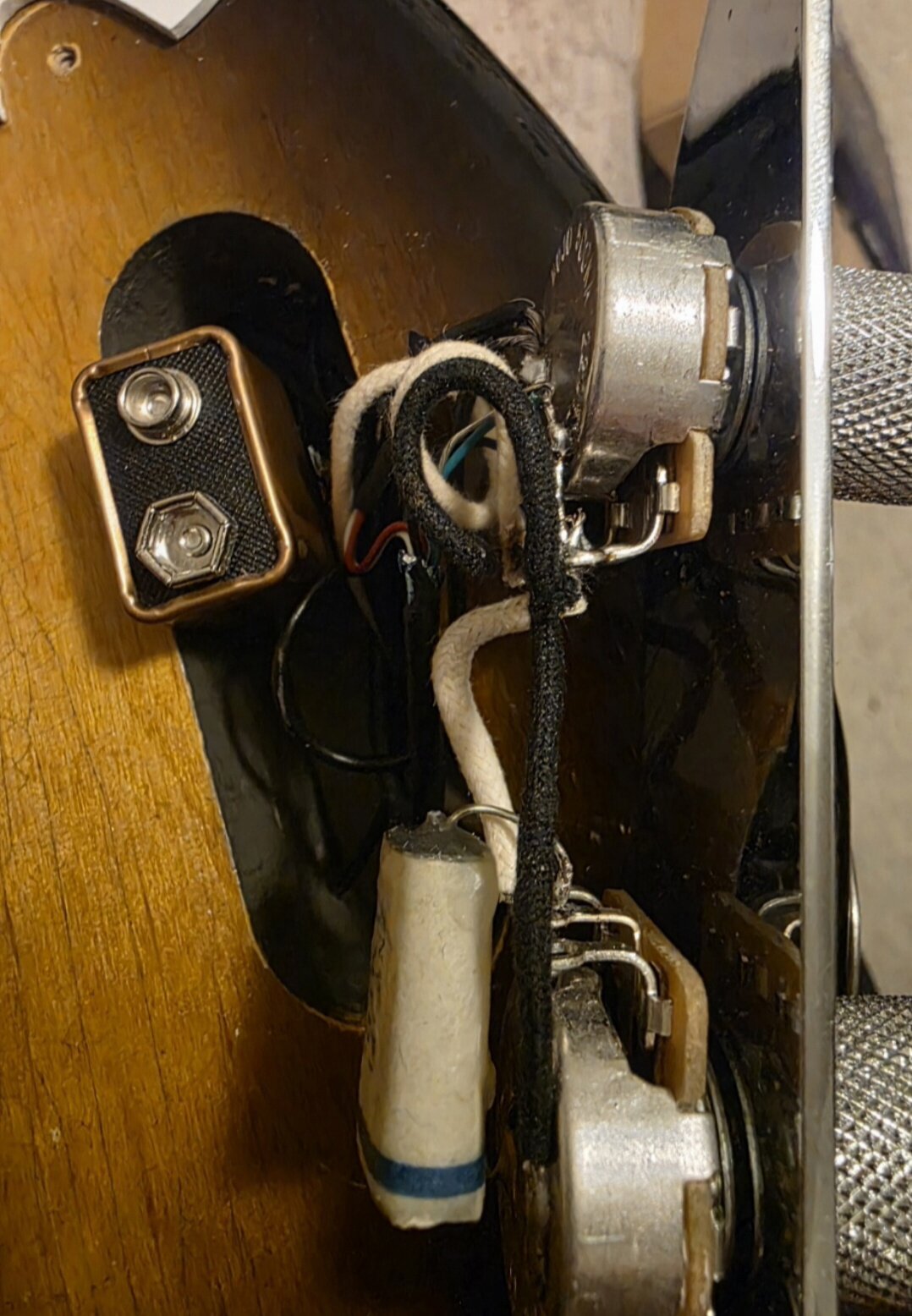

Nope - looks like you'd need to create a separate battery compartment.

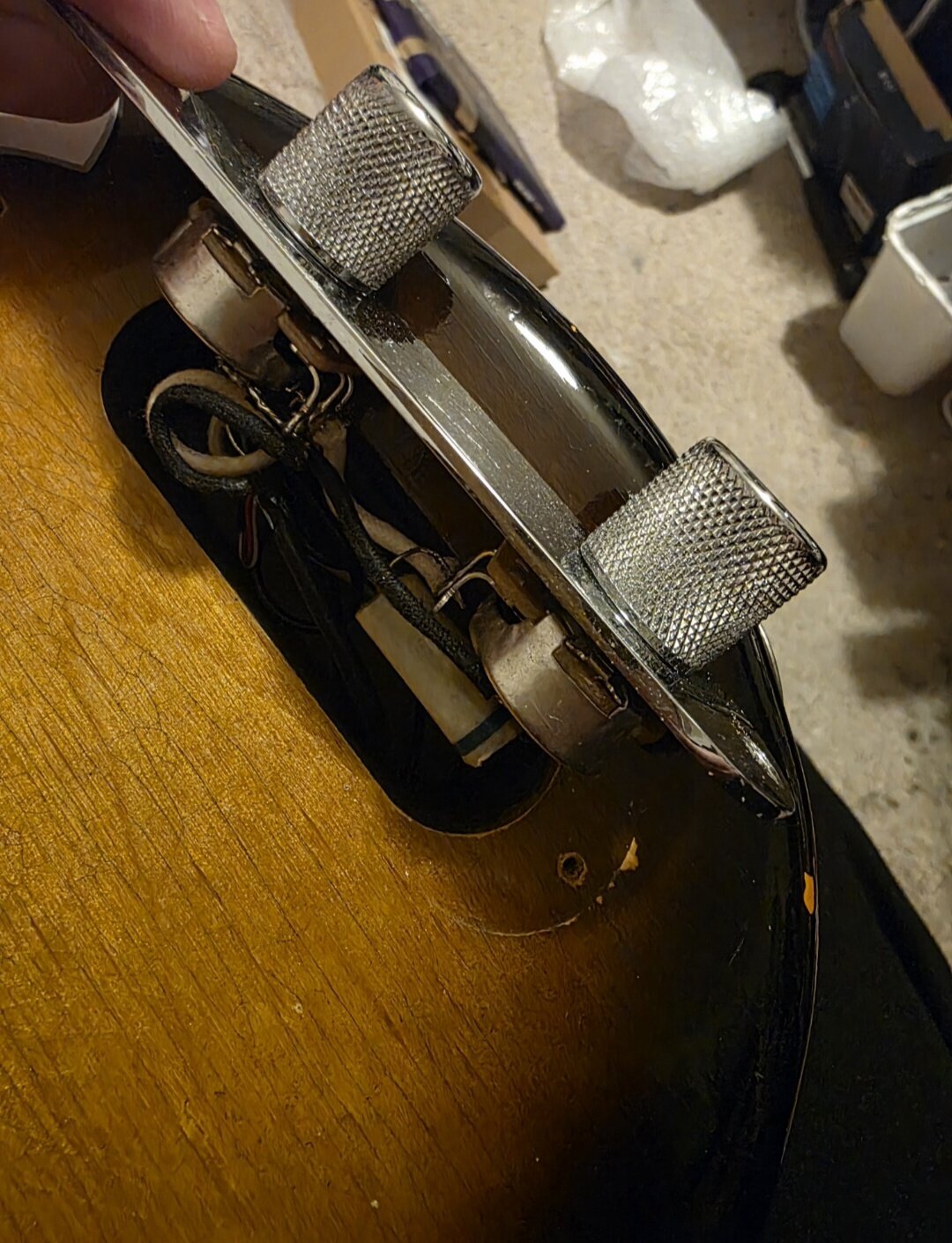

Here are the basic dimensions on my bass.



Body thickness  = 42mm



Standard cavity depth & width  = 30mm deep, 22mm wide.



Pots and capacitor depth from bottom of control plate = 24mm.

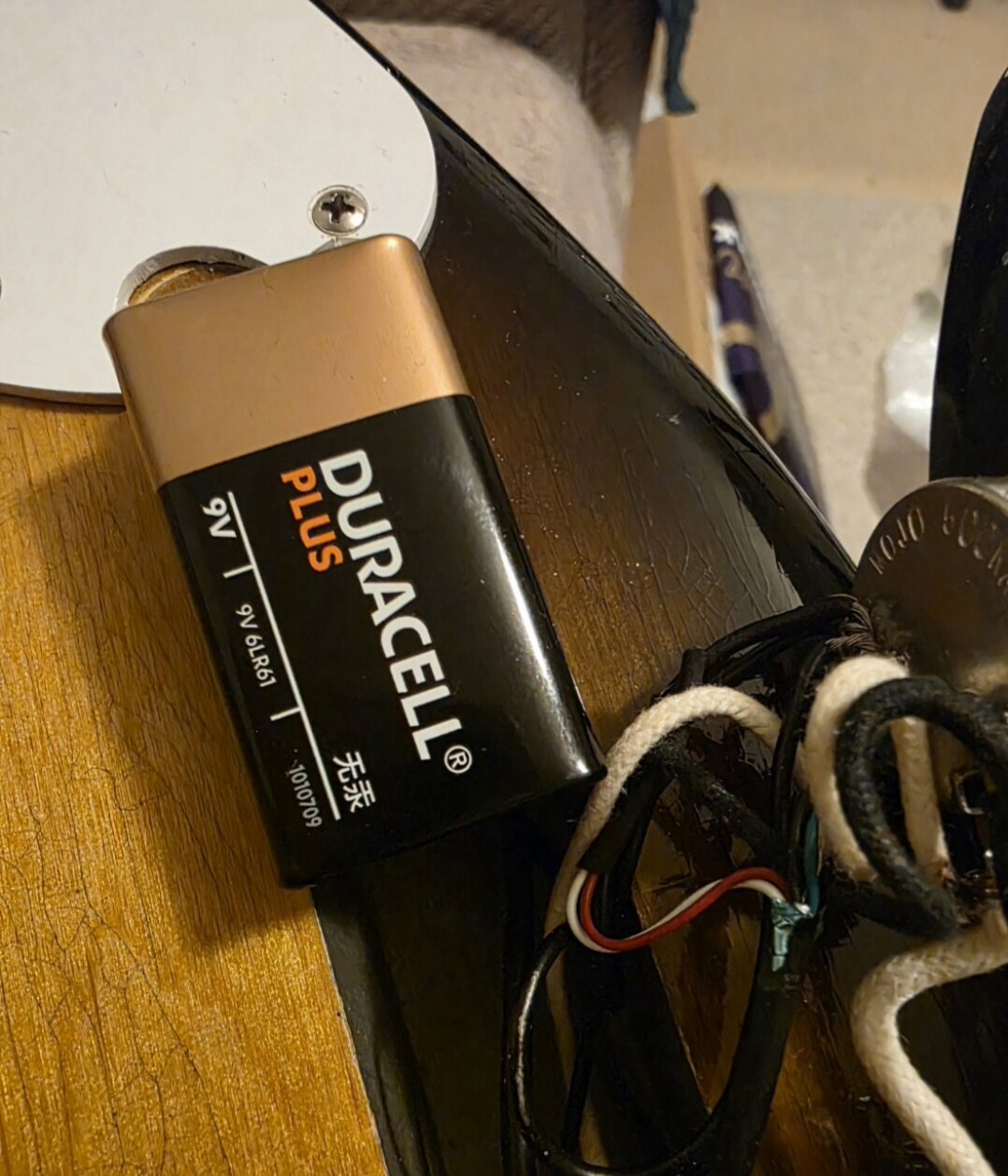

Duracell battery = 23mm wide (wider than the standard cavity routing, and 18mm thick.





[Brian18242]

Thanks all. I ended up going with a passive dimarzio relentless p pickup.
