Ray5 pickup and preamp replacement

[tauzero]

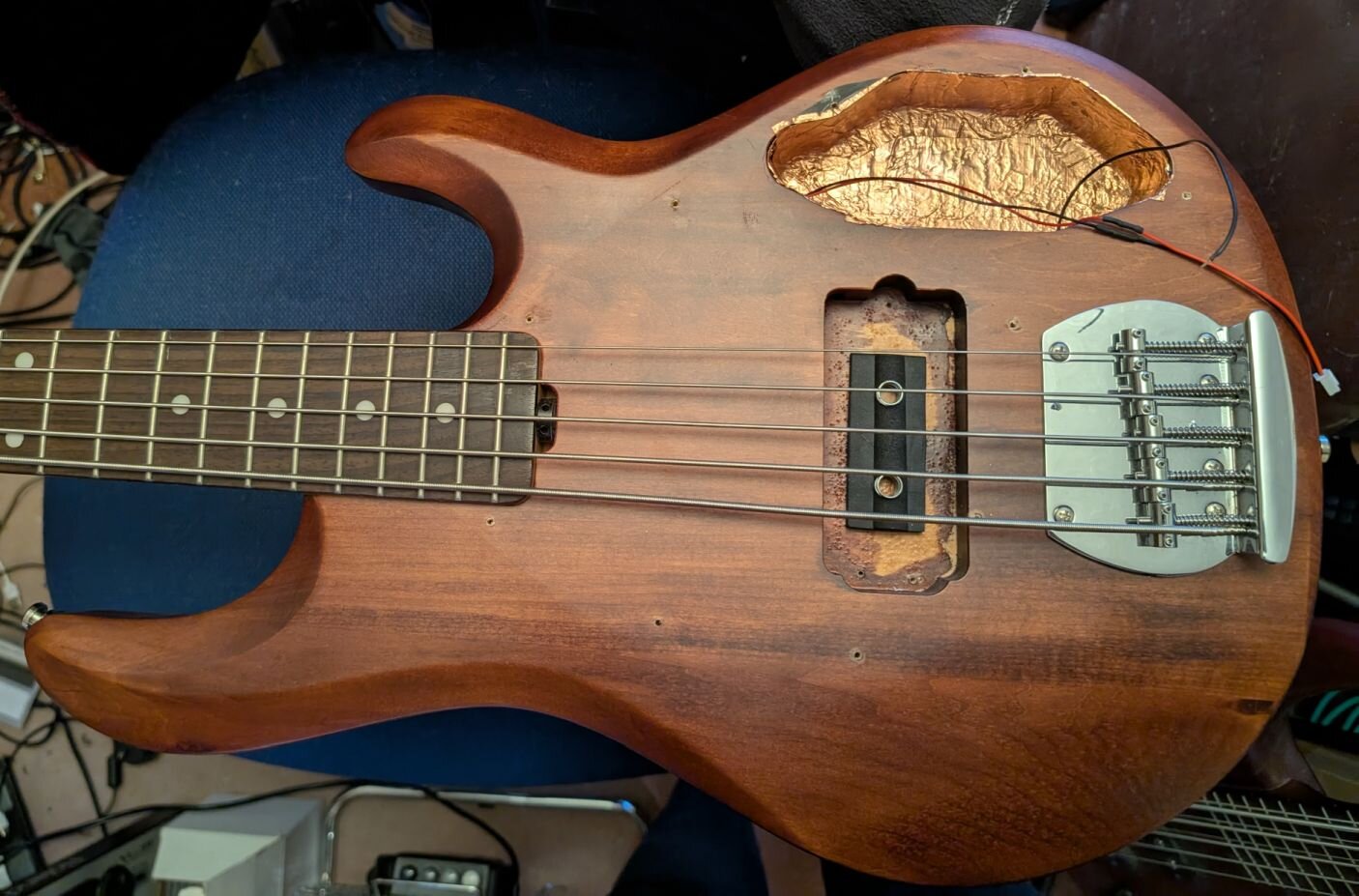

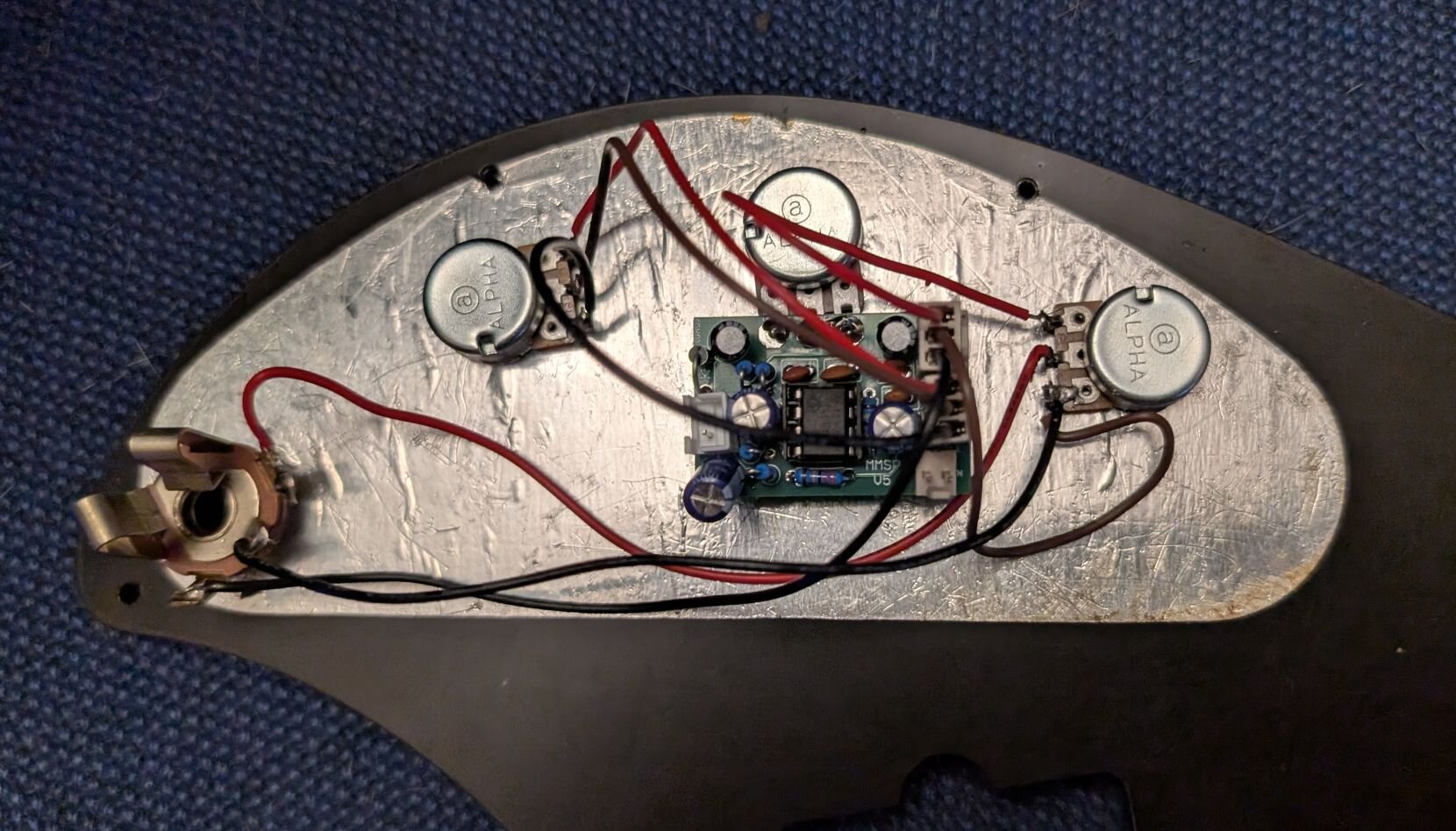

I bought the Ray5 a little while ago with the intention of replacing the preamp and possibly the pickup. My initial installation of a preamp made on an OSH Park PCB didn't work, which subsequently I suspect was due to a flat battery (doh!). I bought a Classic Preamp kit from Musikding and installed that instead. I put a connector on the PCB and the battery clip so I could remove the entire scratchplate if necessary without any unsoldering.







When I got the Squier Vintage Modified Modified, it had a Warman MM pickup in the bridge position. As the pole pieces weren't best spaced for it, I replaced it with an Aguilar MM pickup which was a far better fit, leaving me with a Warman pickup with both coils nicely accessible. So I connected the coils in parallel and replaced the original pickup with that. Again, that was fitted with a connector with the bridge wire going to the ground side.

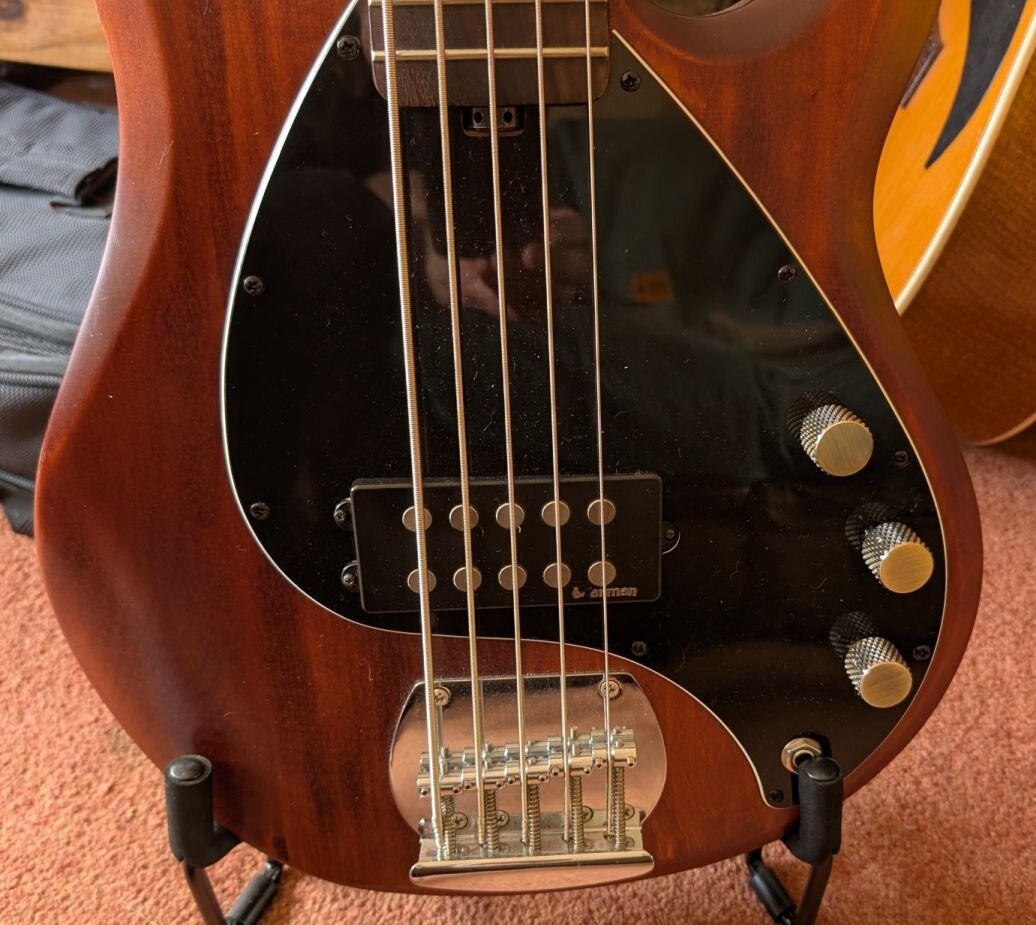

The pots have 1/4" shafts which aren't as easy to get knobs for as 6mm shafts. Bloody primitive measuring systems. However, I did find a set of brass flat top knobs on Ebay which look rather nice on it.





I'm pleased with the sound. Will be doing some more playing around.
