The spray booth is finished…..well nearly….

[Silky999]

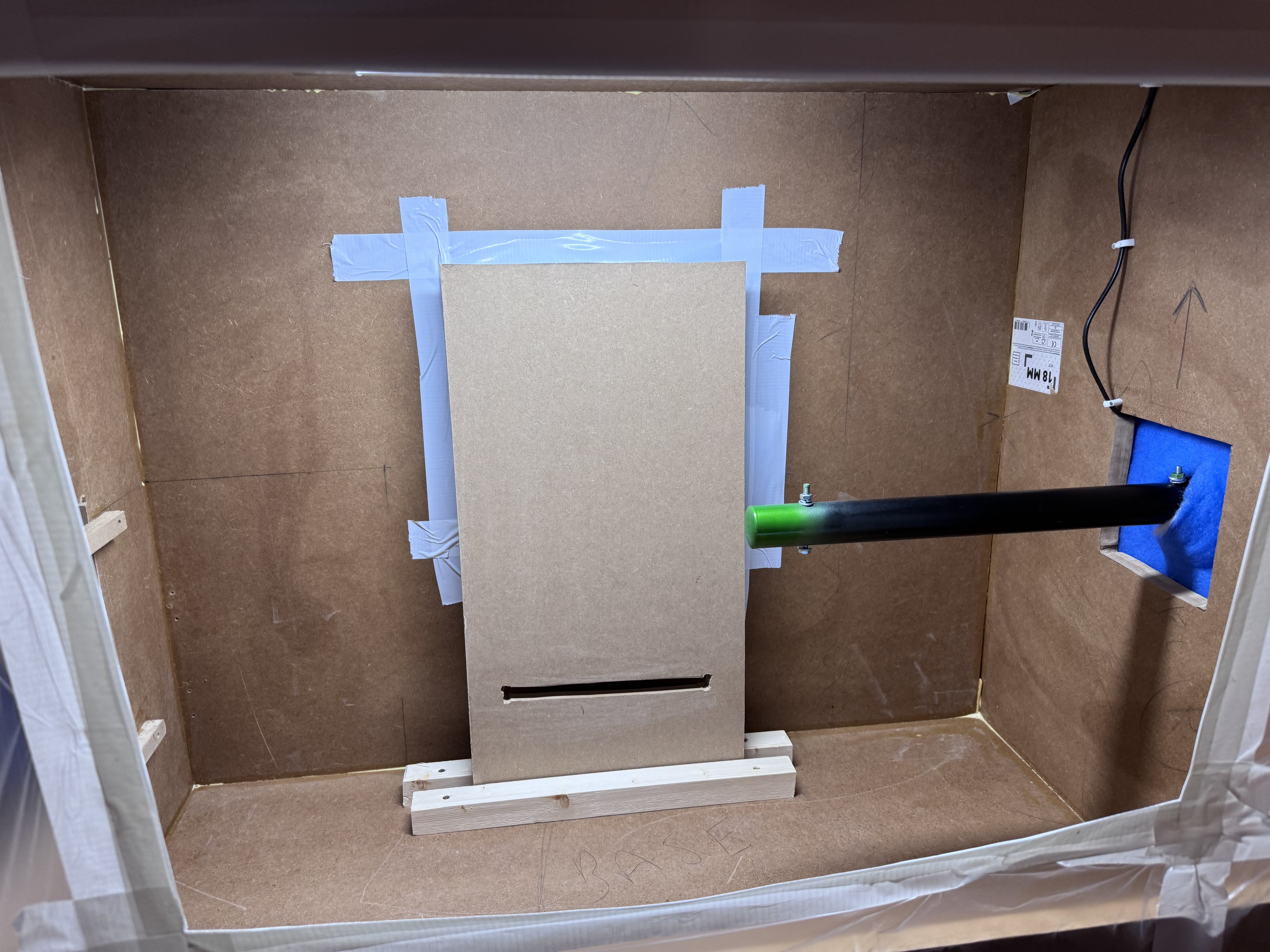

So apart from a HVAC filter that is still to be delivered, the spray booth is finished. Constructed from 18mm MDF with plans generated by ChatGPT, an adapted dj light stand for a jig, a used hydroponics extractor fan off eBay and a Mr Bezos led batten light.

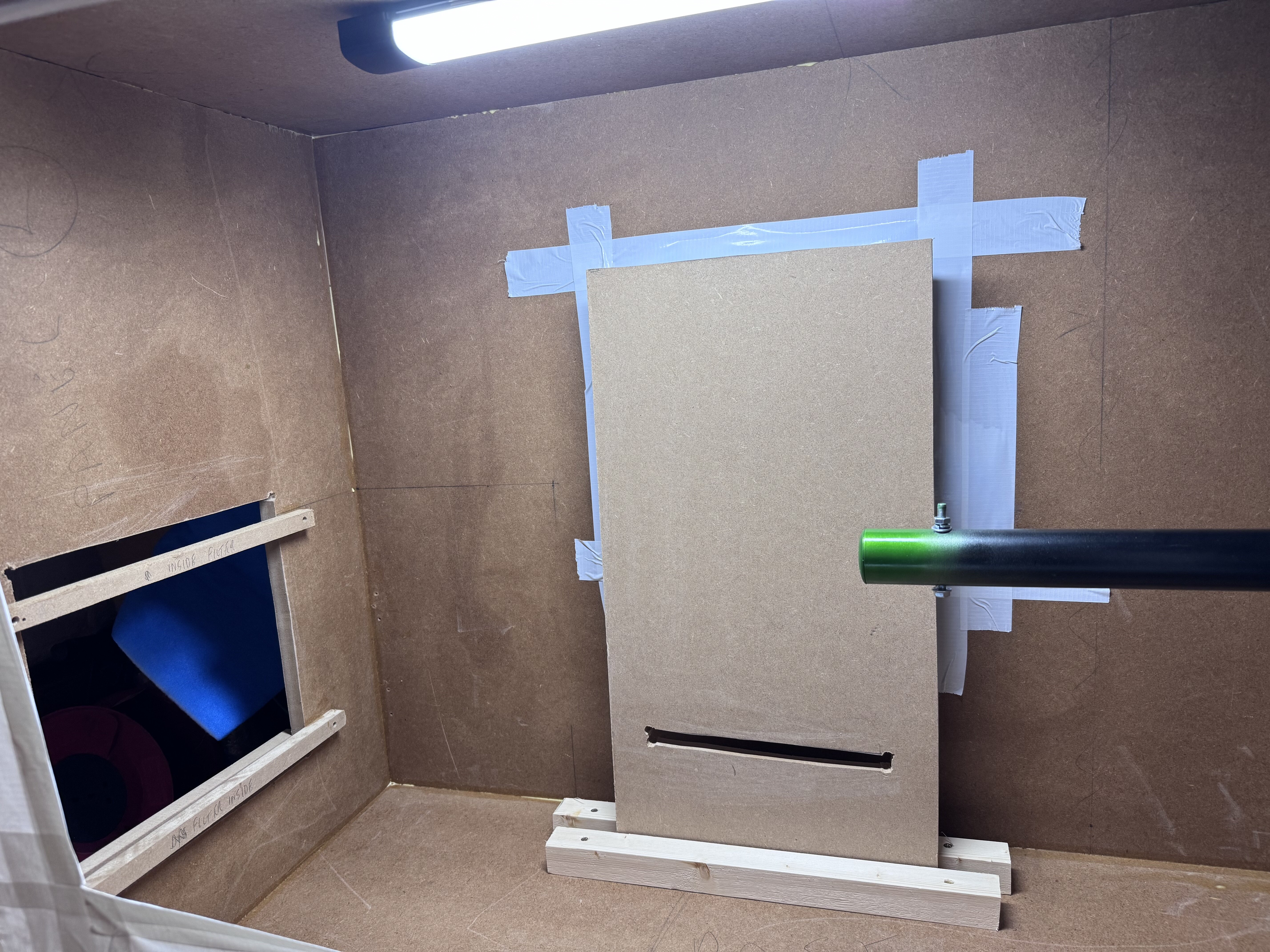

The duct tape is not holding it together but just some extra sealing on the panel joints as well as glue and screws. The baffle protecting the extractor filter from overspray just slides out so I can change the filter easily. I am hoping that this will make spraying easier, quicker and yield better results.

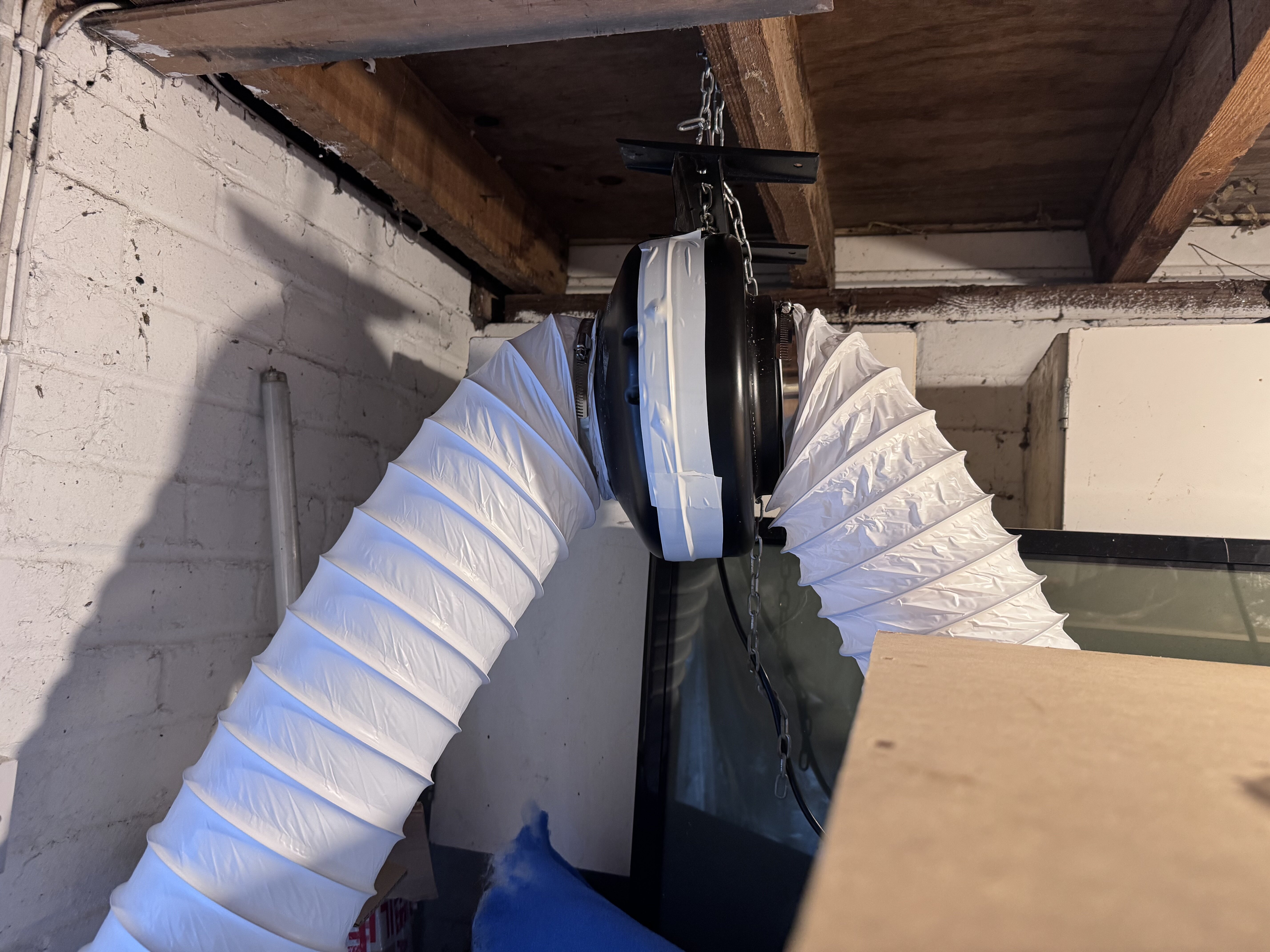

I will look to support the hoses better so reduce the angles at the extractor fan and improve airflow. I was also not worried about the interior look as it will soon be covered in paint lol.


I just need something to spray now……..

Edited August 6, 2025 by Silky999

[Richard R]

Looks good. Do you put clear plastic or clingfilm over the light each time to stop it getting covered in paint?

[Silky999]

24 minutes ago, Richard R said:

Looks good. Do you put clear plastic or clingfilm over the light each time to stop it getting covered in paint?

Forgot to mention that I am also waiting for a clear plastic wall corner protector. It is L - shaped and will sit in front of the light to protect it from the spray

[Silky999]

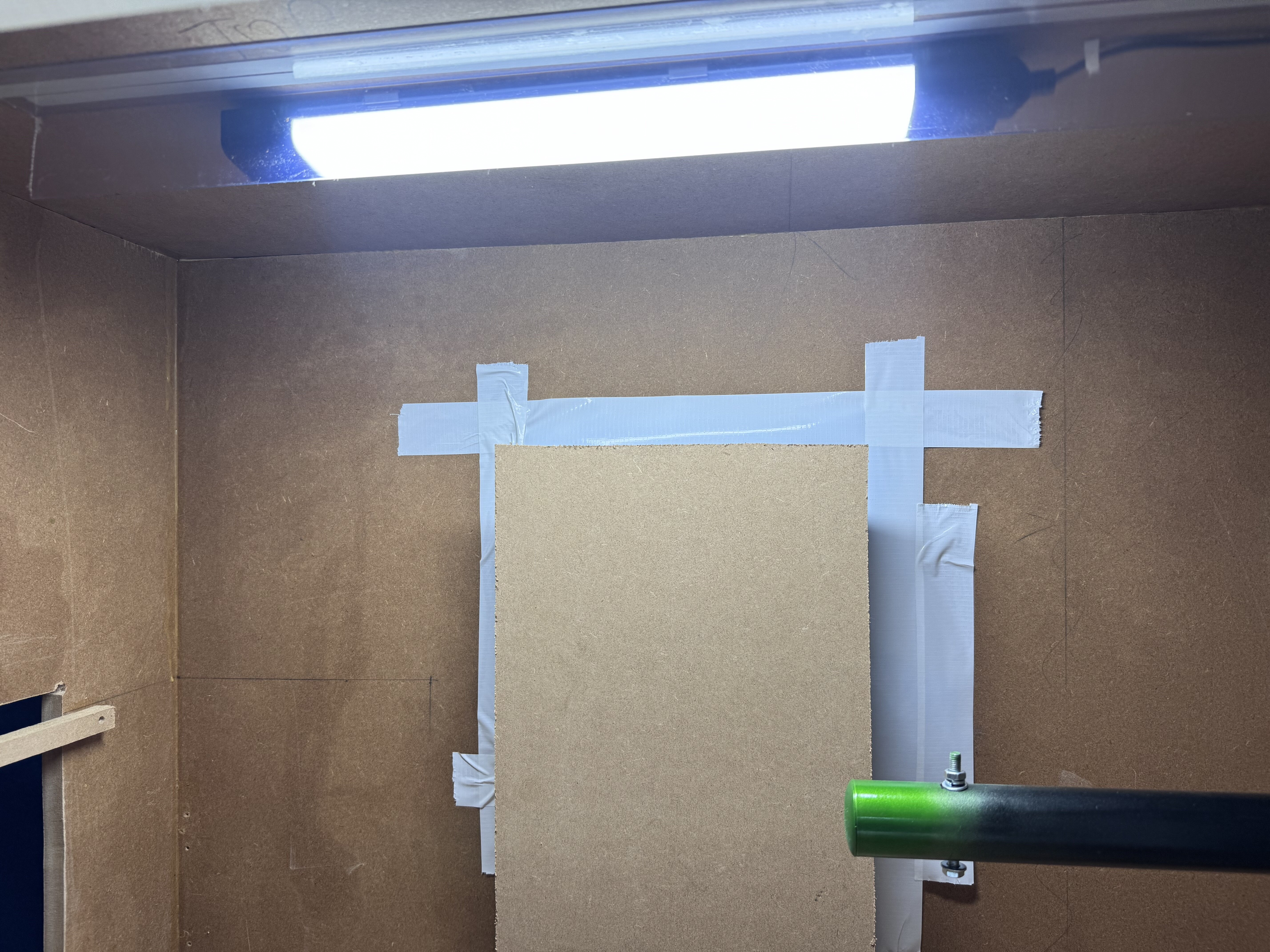

Plastic added to protect the light



[HeadlessBassist]

On 06/08/2025 at 22:35, Silky999 said:

I just need something to spray now……..



Working on it... 😁
