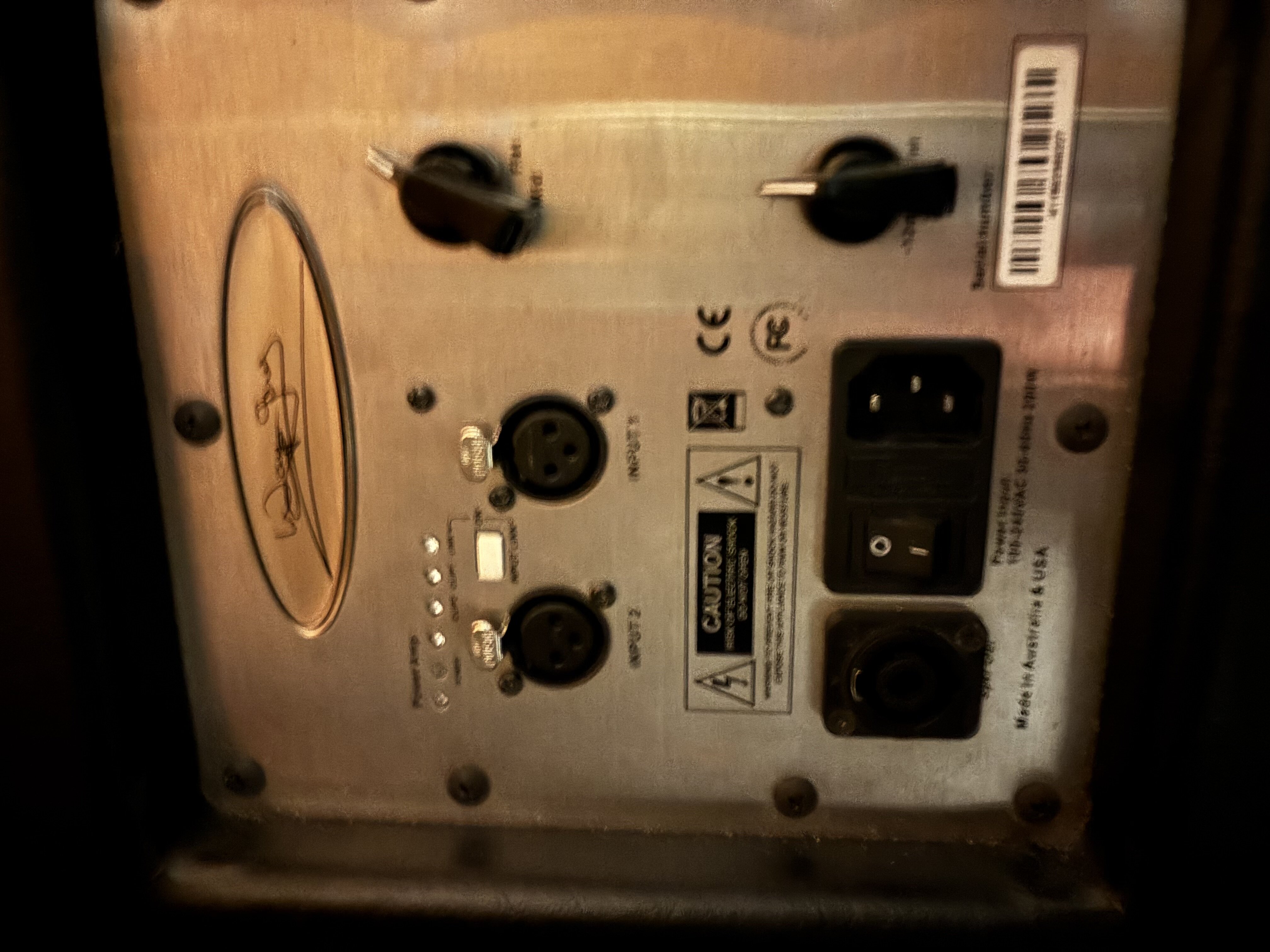

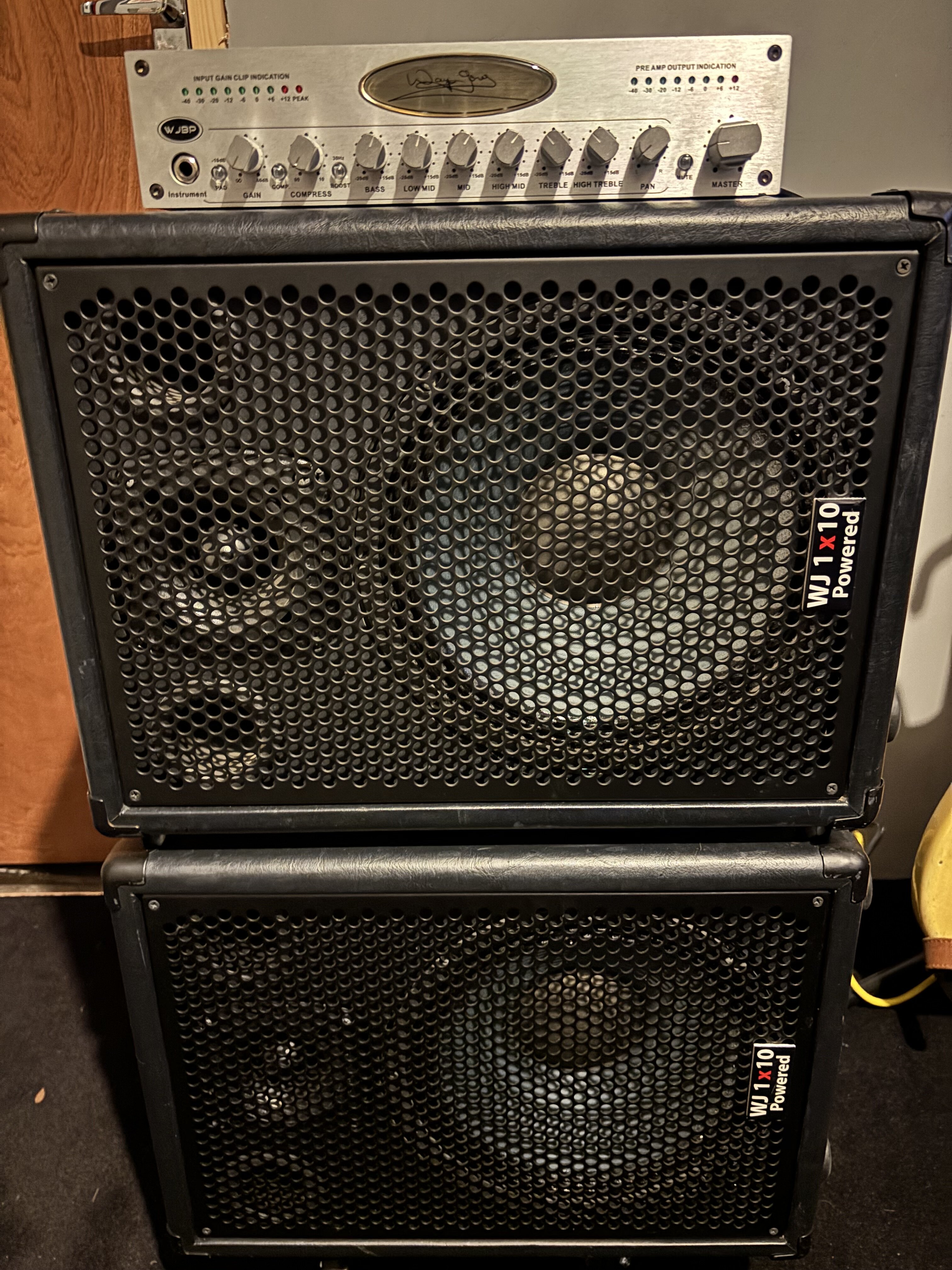

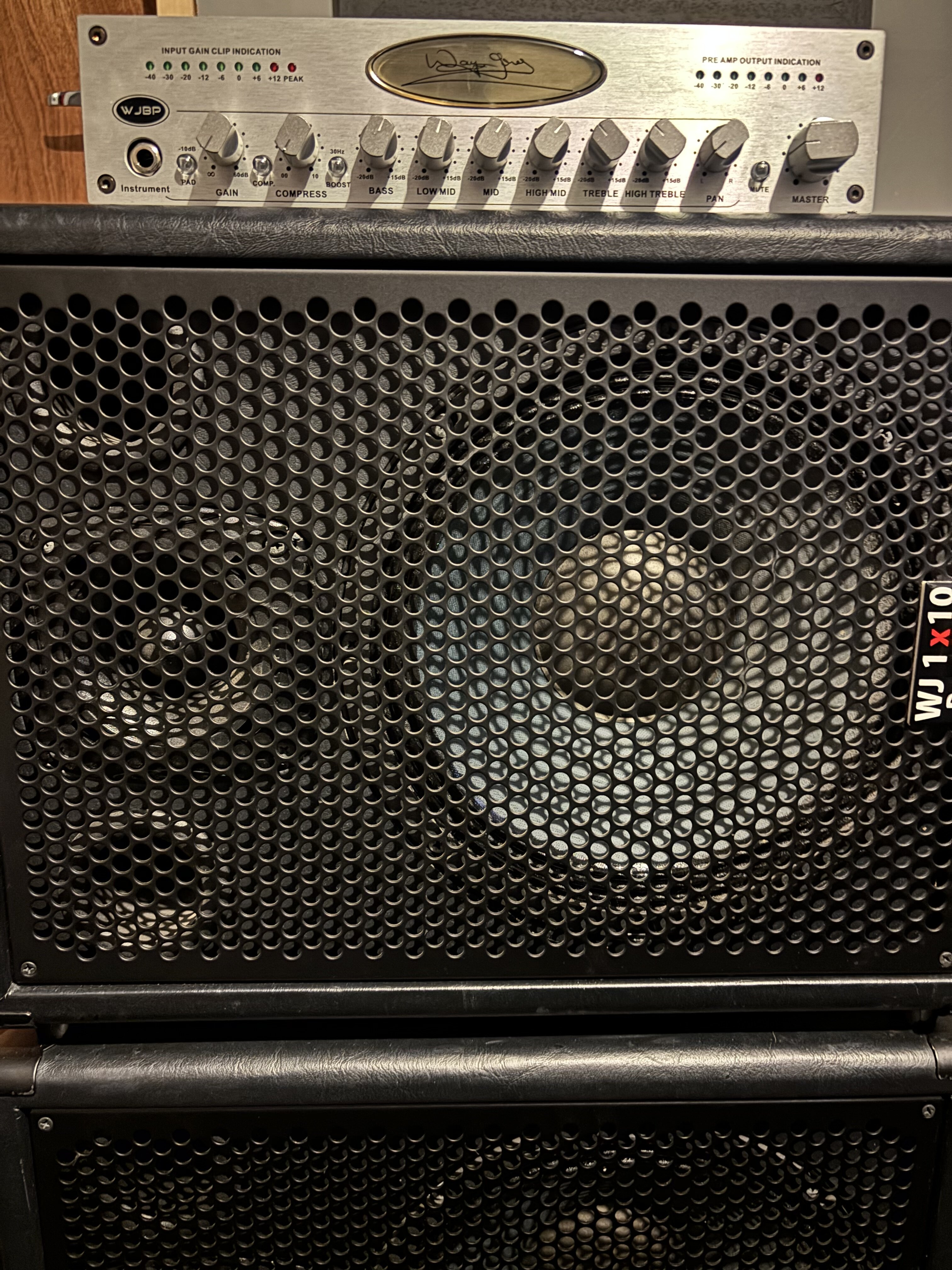

johnbiffa Posted 1 hour ago Posted 1 hour ago (edited) I am predominantly using IEM and FoH in my Steely Dan tribute band and this incredible rig is not seeing any use, I have 2 cabs and price Inc Preamp (boxed) and 1 cab, needs to be collection or meet up or buyer organises courier. Review by SBL WJBP Bass Guitar Pre-Amp DI Notes from Wayne Jones: My perfect sound was an Avalon 737 studio pre through my WJ powered cabs. So I set out to design a bass pre-amp that truly reproduced your bass sound & thus enabled you to tailor your sound. Also the tone controls had to work in the right areas & the pre had to have all the bells & whistles we need to do our job. Again no expense spared, just the highest quality components I could get for everything we need on stage & in the studio. These were my Instructions to my Engineer. I have achieved that with the WJBP This pre will also make front of house engineers happy as what goes in comes out. The WJBP is designed with a no compromise attitude in Cost, Quality, Components & Features just as are WJ High End High Powered Bass Cabinets. Features Input 1/4” phono stereo/mono jack Input Gain For both Passive & Active basses -10 Db pad Input Gain clip Indicator LEDS (top left corner) Tone controls are critically set by Wayne & are extremely accurate in the attack points of each string. You can set them by one for each string on your bass All +15Db -20 Db Incredible separation between the tone controls There is also a 30 Hz boost for those that may like it ( not really needed at all as the Bass control gives such a great bottom end with ultimate attack). In/out button for selection Compressor: Optical, automatically senses & is very effective even with a very small amount engaged. In/out button for selection Balance: This is a balance control for stereo operation e.g. 2 WJ 2x10 or Stereo WJ 1x10 Powered cabs. Master volume Controls output Pre-Amp Output Indicator LEDS (top right corner) tell you if you are overloading the WJBP output Mute - Puts the WJBP in standby mode. LED Indicates when in use. The Mute mode should also be used for power up of the WJ Powered cabs, otherwise a very loud 1000watts will sound when WJ Powered cab (or separate power amp) is turned on. It also operates the built in Tuner. For standard tuning for 4, 5 & 6 string basses Foot switch mutes all output for silent tuning. Master Outs 2 balanced XLR (recommended) outs for connection to WJ powered cabinets or to separate power amps Balance control on from panel will affect these outputs. Also a choice of 2 Unbalanced 1/4" outputs for same function. (not recommended as output is lower) All master outs can be used together as a pair or Individually with balance control set to the respective output FX Send & Return - Stereo or mono Foot switch - Mutes all output DI Output - Balanced XLR out with Level control & ore or post EQ button Aux Input - Stereo input, both 6.3mm & 1/4” phono. You an use this to plug items such as iPad, iPhone backing tracks etc. to play along with. Headphone With Volume Control - Plug in your headphones to practise with. You can use the WJBP by itself without plugging into a power amp. Rack Mount Ears - Included Specifications Input 1/4” Active Unbalanced Impedance 220K Max Level +20dBu Outputs Balanced XLR Impedance 300 Ohm Max Level +27dB 1/4” TRS Unbalanced Max Level +22dB Frequency Response 10 hZ to 20 KHZ THD+Noise@1KHz 2.5 % Signal to noise ratio >80dB Limit 2 Total Gain 62dB Universal Line Voltage 115/240 VAC, 50/60Hz Shipping size 40.5 cm x 32.5 cm x 18 cm Weight 5.9kg Rear Panel Inputs 1/4” & 3.5mm TRS Active Stereo Impedance 20K Max Level +15 dBu EQ Band frequencies: Band 1 20-300Hz, Centre set at 80Hz Band 2 60-1KHz, Centre set at 160 Hz Band 3 150-2.5KHz, Centre set at 500Hz Band 4 450-8KHz, Centre set at 1.6KHz Band 5 1KHz-20KHz Centre set at 5KHz Band 6 Centre set at 10KHz Size 6.6 cm x 30 cm x 24 cm (including knobs) Weight 2.41kg Cab The WJ 1×10’s Are Extremely light weight (no more back trouble) great for small rooms. 500 Watt a side, 4 ohm cabinets that are used as a pair in stereo or parallel mono. These will blow you away. Ideal for smaller gigs. They are so light but sound so full & clear, 40 Hz- 20 KHz You can also use the powered one by itself as a 500 Watt cabinet. It will only use one side of the power amp which operates totally separate from the other. Besides all that you can pop them up on stands & use them for monitors in your home studio. Digital Dsp For Powered Bass Cabinets Wayne Jones Audio powered bass cabinets now feature DSP input and crossover. The DSP technology used has been developed with our award winning range of Wayne Jones Audio Studio Monitors in conjunction with SoundID Reference from Sonarworks. Cabinet Specs: For a pair Power - 1000 watts. 500 Watts per side into 4 Ohms per side Power Amp - D Class switch mode stereo power amp with heat sink plate mounted into the rear of one cabinet. Power Amp frequency - 20 Hz – 20 KHz High Pass Filter – 30Hz roll off Cabinet tuning – 40 Hz to 20KHz (speakers will reproduce below 30Hz so thus the need for the HPF) Drivers - 2 custom made Wayne Jones 10” drivers with Aluminium cast frames, specially formulated cone pulp, Kevlar impregnated cones. Voice coil – 3” Magnet – Massive Ferrite Tweeter - JBL, 1.75” Voice coil Crossover point – 3.5KHz Control plate – Brushed Stainless Steel Mains Power in- IEC 2 XLR balanced Inputs with parallel mono (link) or stereo selection switch. LED readout for thermal & amp; clip Indication. Attenuators High -12Db cut Mid attenuator -12Db cut @ 300Hz to 600 Hz range Dimensions Height: 47cm Width: 35cm Depth: 52cm Weight Active 18.2kg Passive Edited 55 minutes ago by johnbiffa Video 2 Quote
