New spray booth and gun

[Silky999]

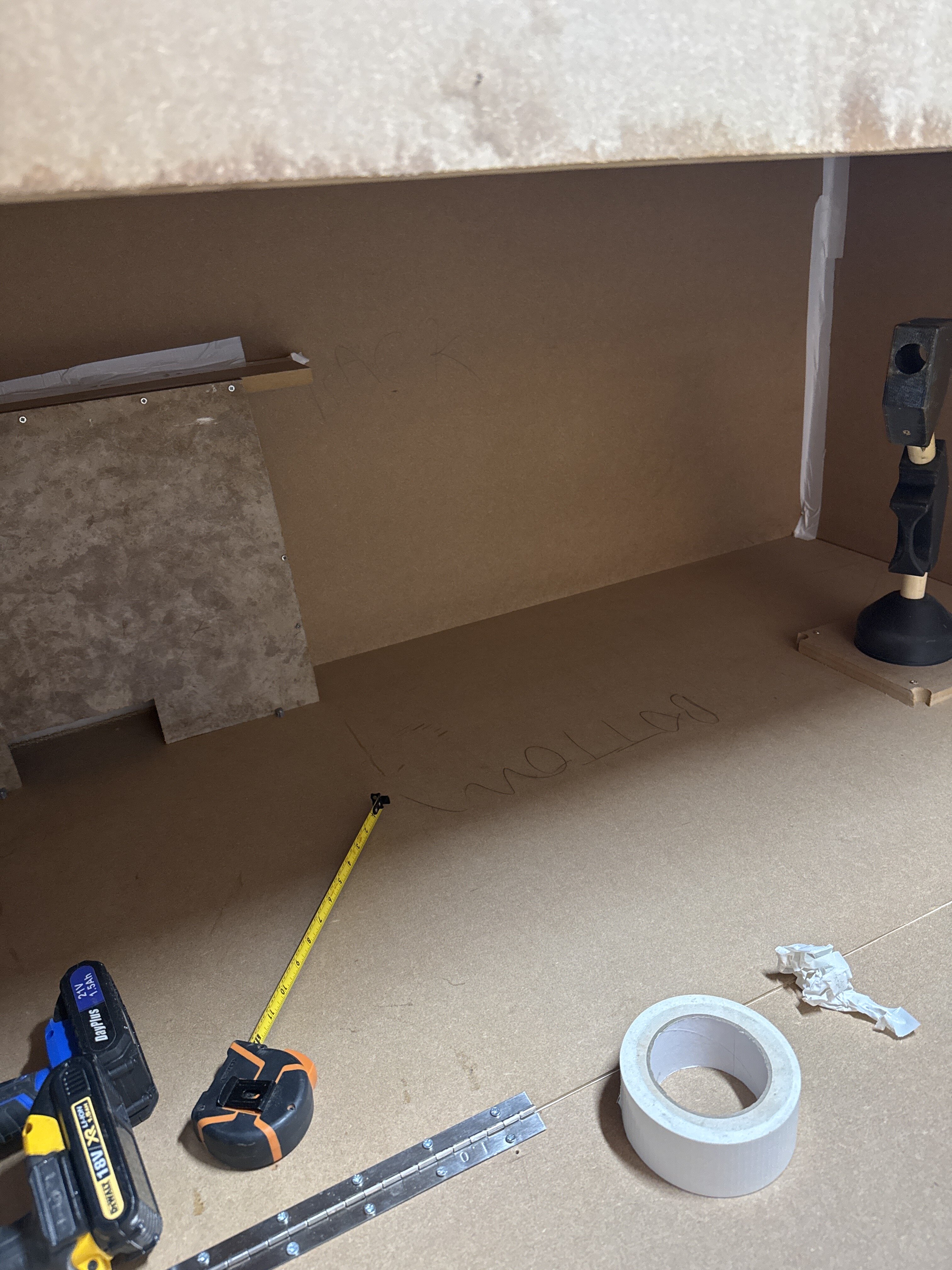

I have spent the weekend building a larger waist height spray booth from my version 1 as it was a little too small to be comfortable. The dimensions now are 150cm wide x 100cm high x 80cm deep with a 6” extraction fan.  Made from 18mm MDF. The front bottom panel is on hinges so I can open it up to be horizontal when spraying  to aid airflow and a barrier for floor dust. It is also a handy place to mix paint and thinners. There is also a front top panel so that the front opening is restricted slightly. Extraction is on the bottom left of the back panel with a baffle to hopefully encourage downwards cross flow across pieces. The jig is a Billy Boy.

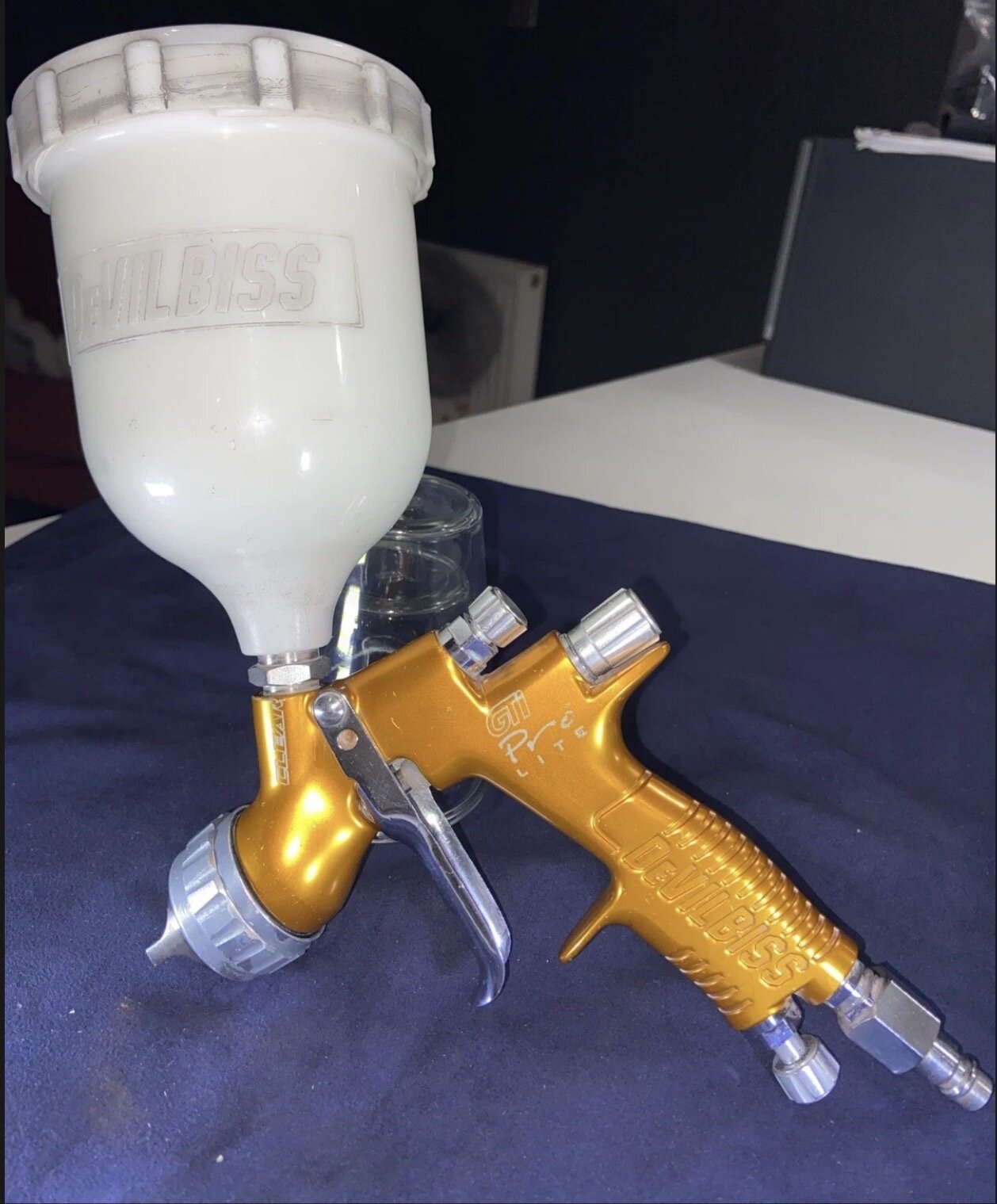

i also upgraded to a used Devilbiss GTI PRO LITE 1.4 CLEAR with T110 air cap which is my dedicated clear coat gun now. It is a massive improvement over my budget guns and the finish results are so much smoother.  One of the old guns will be my base coat and the other set up for primer.


Air is from a SIP QT 100 litre compressor with 16 CFM displacement and 13 CFM FAD. The compressor is only about 63dB so much quieter and more efficient than my previous one.


Finish-wise, I am using nitro paint and clear, 1k polyurethane clear and am going to try some 1k acrylic clear on a future build. It’s too dangerous to use the 2k stuff without a proper air fed respirator and certainly not in a garage attached to the house!
