Double bass C extension - MAKE AN OFFER £500 Bournemouth

[Streety2025]

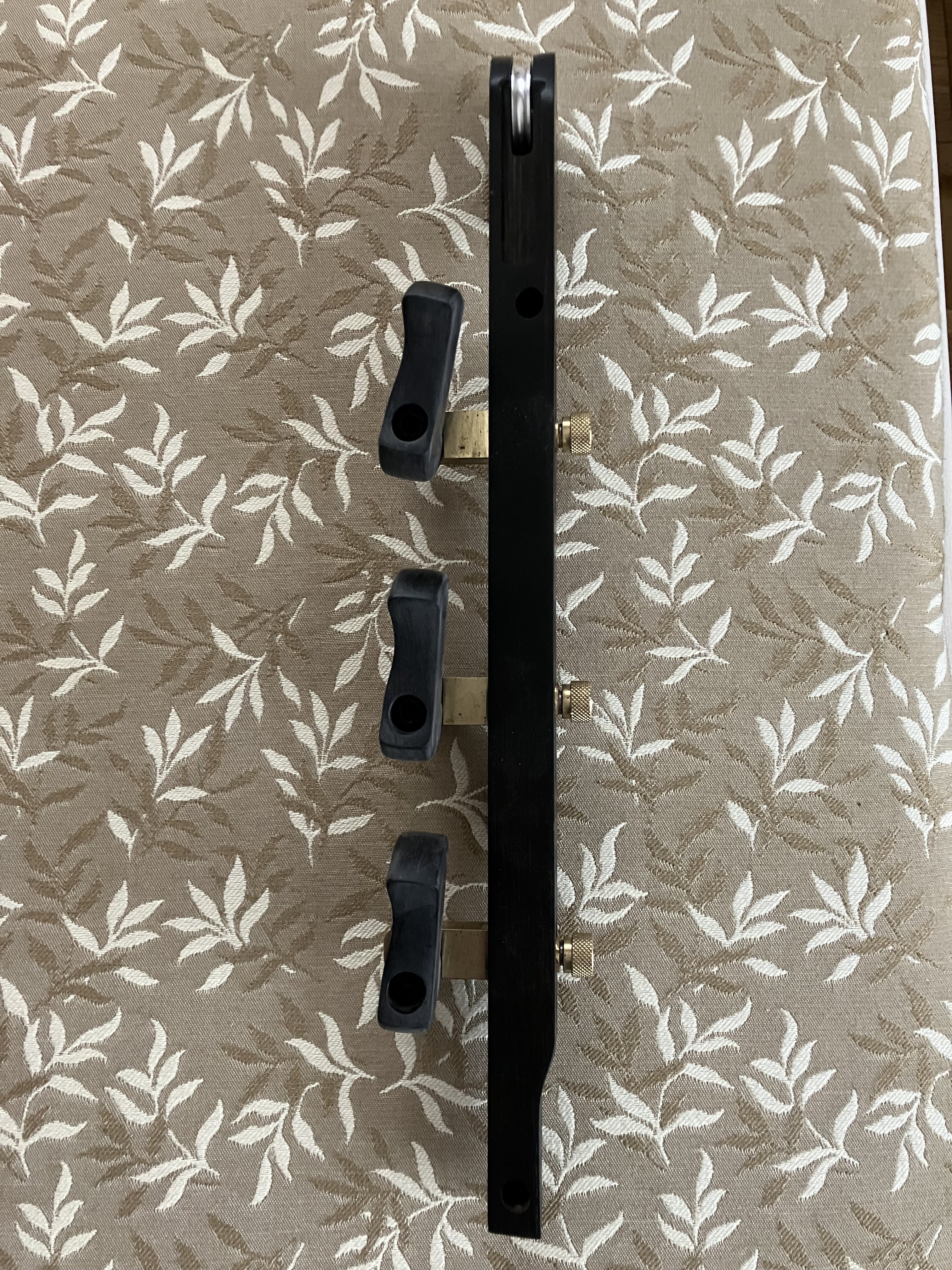

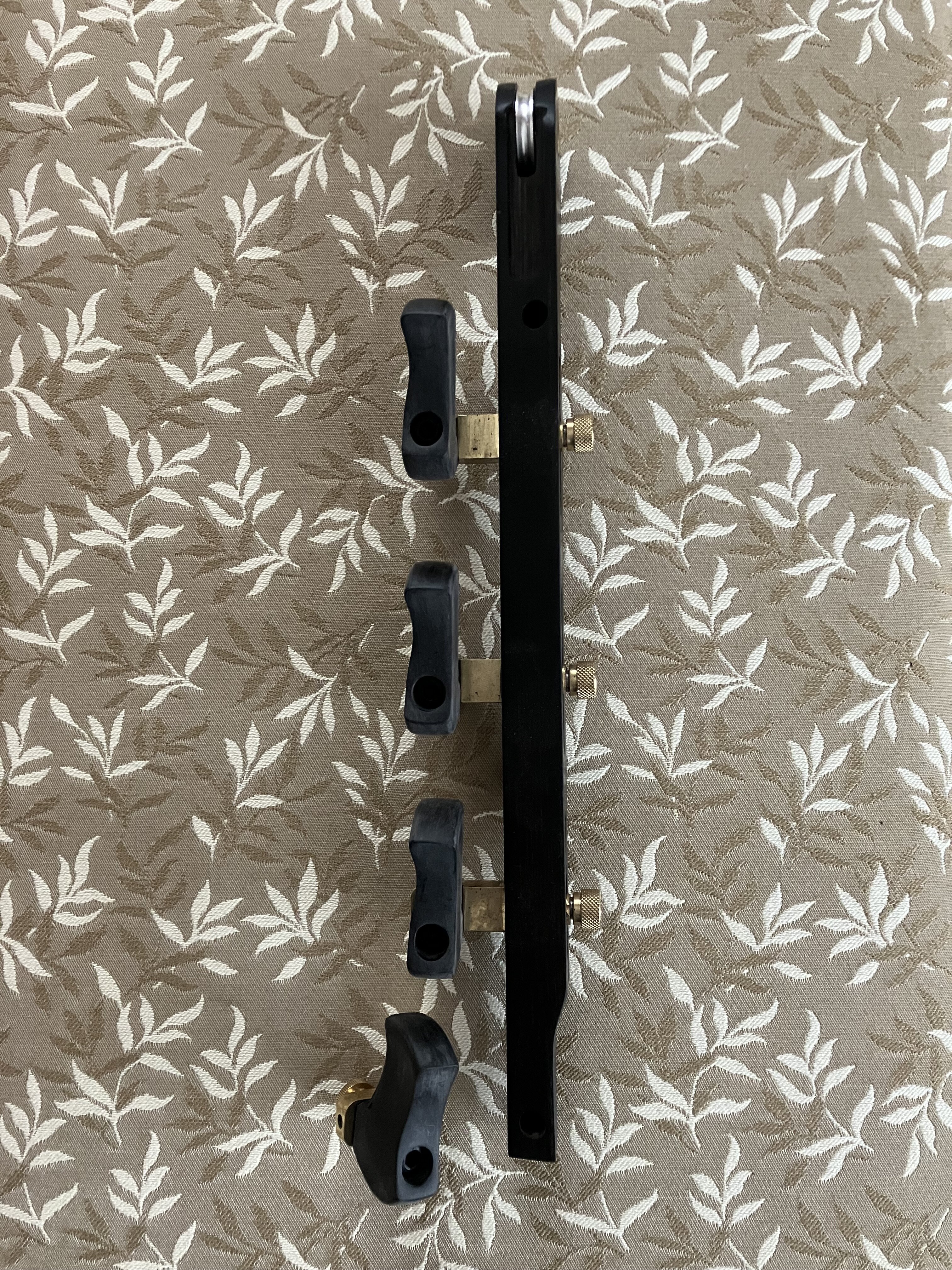

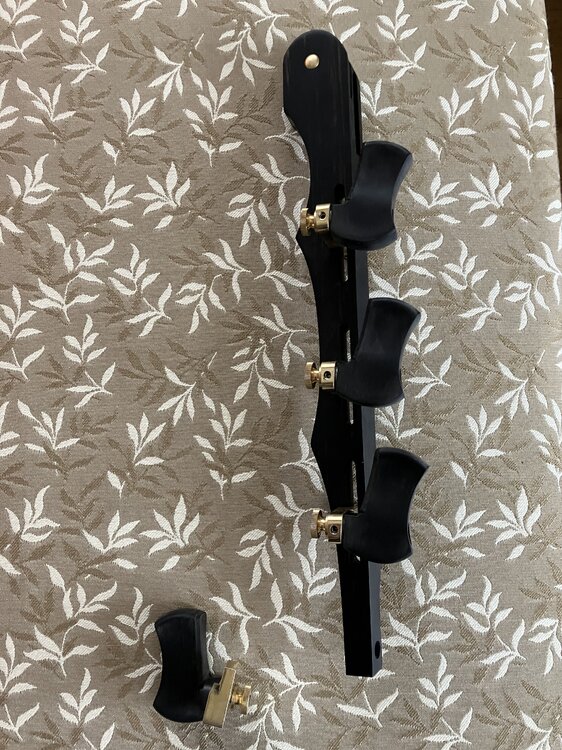

New and unused Ebony C extension unit for a double bass ready to be fitted by a luthier and is ready to be shaped to a bass. Lovely ebony and lovely strong big clips for ease of use.


To fit this extension you will need:

1.     Atleast 12mm thickness of ebony at the top of the ebony fingerboard on the bassside (where the note F can be found).

2.     Thiscannot be fitted if the front of yourscroll sits forward of the neck projection line.

3.     Theneck projection line is the line where the maple neck and the ebony fingerboardmeet on the side of the neck. Project this line up over the peg box to thescroll. If your scroll sits forward of this then this extension CANNOT befitted.

4.     Themaximum (or standard) scroll height for this extension if the front of yourscroll sits on the neck projection line is 245mm

5.     Forevery 5mm that the front of your scroll sits back (minus) from the neckprojection line, the maximum scroll height is increases by 5mm (inversely theminimum height decreases by 5 mm)

6.     Youcan increase the maximum scroll height fitment for all scrolls by 10mm byreplacing the 30mm pulley with a 20mm pulley (you will source this yourself)



 Open to offers. Will ship worldwide.
