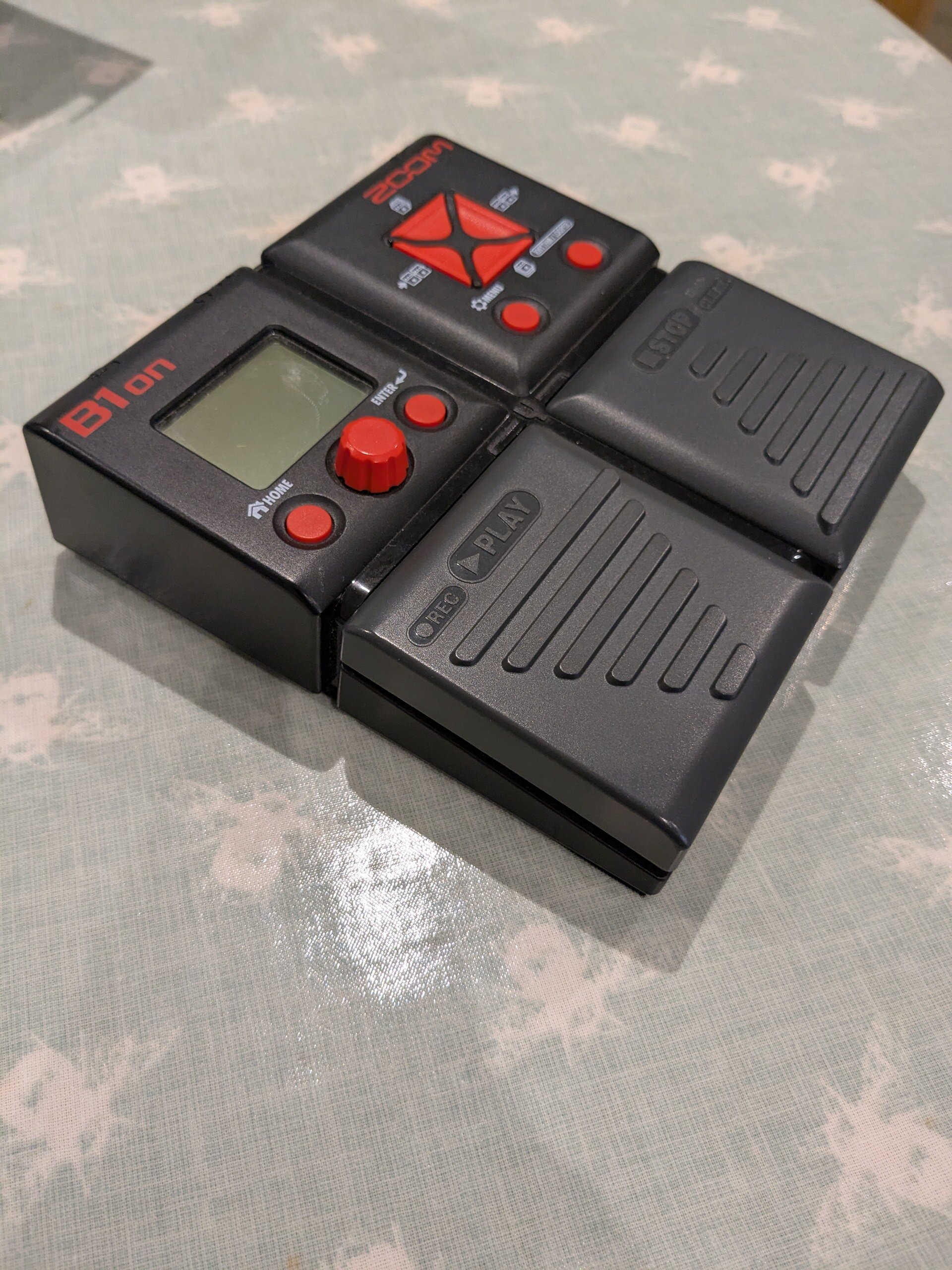

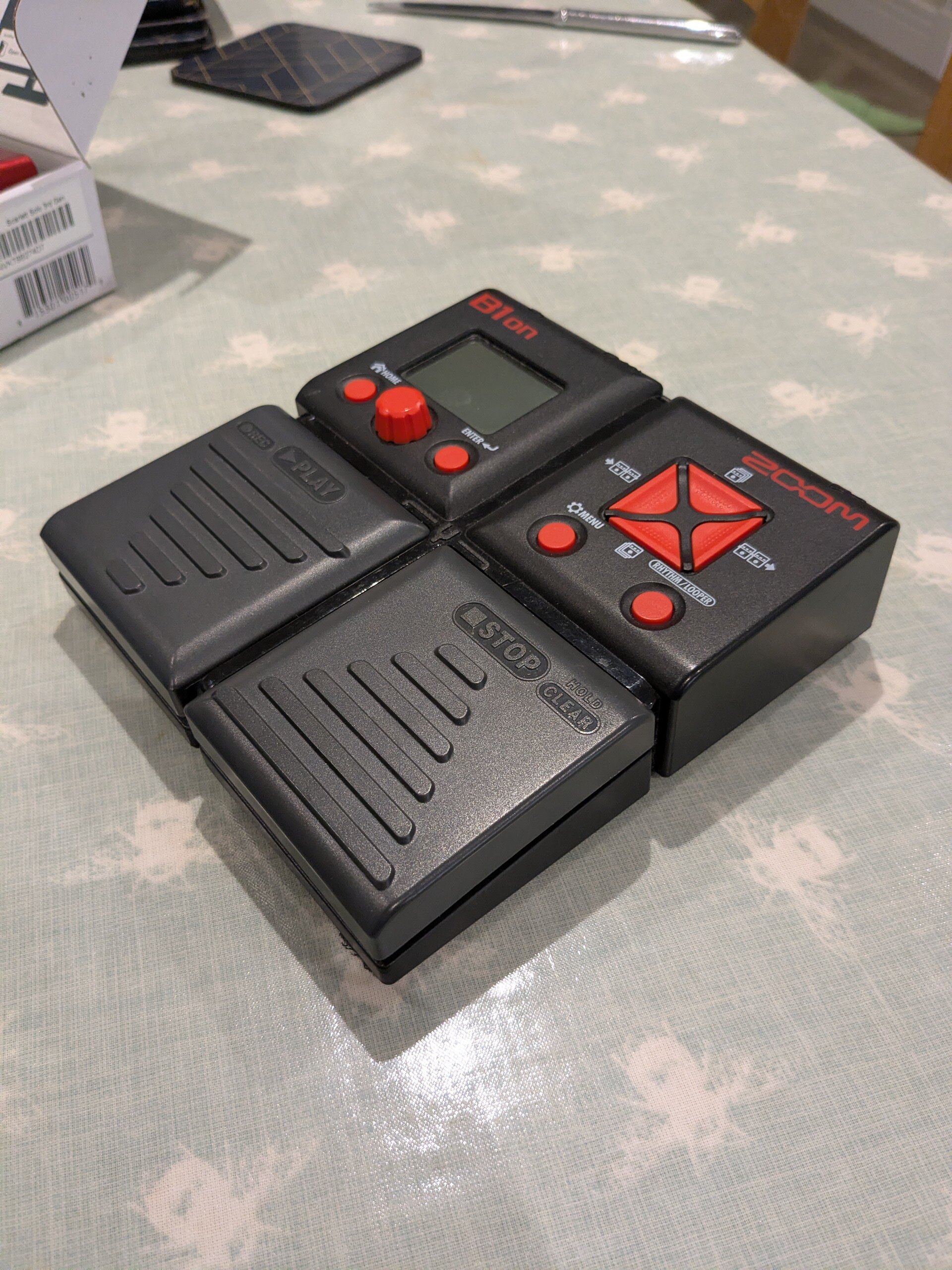

Zoom B1on £50 Edinburgh

[TheDaivisch]

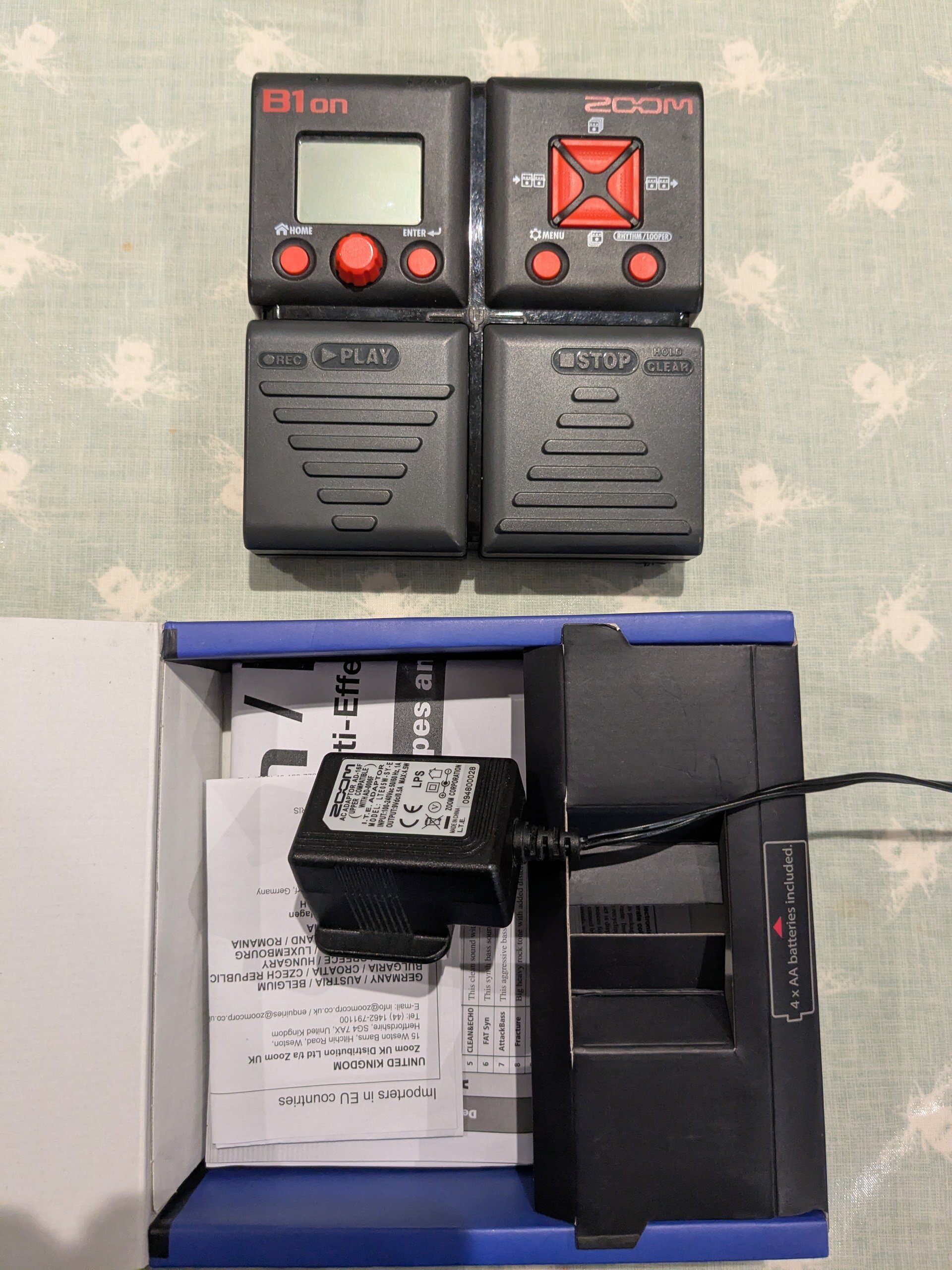

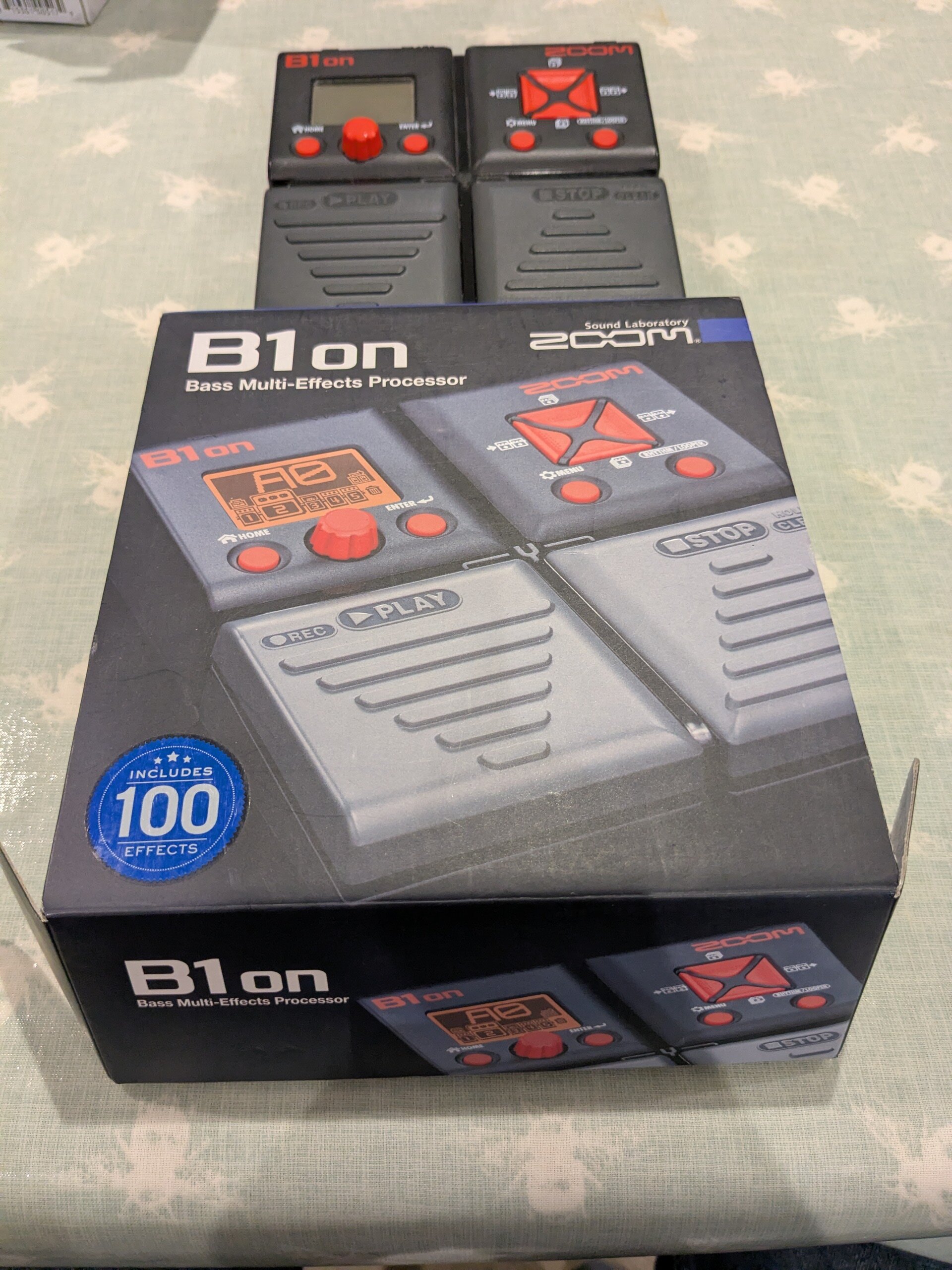

Immaculate, never gigged, with all original packaging paperwork and power supply.

Fantastic quality little do-it-all box.



Features at a Glance



Feature List

75 effects, including distortion, compression, modulation, delay, and reverb

Up to 5 effects can be used simultaneously, chained together in any order

100 memory locations (10 banks of 10) for the storage of user-created patches

Swap function makes patch organization a breeze

Auto Save function for automatic saving of all patch parameters

Pre Select function allows silent patch selection while keeping the current patch operational

Onboard chromatic tuner supports all standard bass tunings

Looper feature for the recording of up to 30 seconds of CD-quality audio with seamless start and end times

68 built-in rhythm patterns which can be used in conjunction with the Looper

Standard ¼" input jack accepts standard cable (both active and passive instruments supported)

⅛" auxiliary input jack for connection of personal music players

Output jack for connection to amp or headphones

Backlit LCD with contrast control for easy viewing in low-light environments

Lightweight and small enough to fit in your gig bag

Easily integrated into any existing pedalboard

Runs on 4 AA batteries, with alkaline battery life of 20 hours

USB port for power and firmware updates

Optional AC adapter

Specs

Number of effects: 100

Number of simultaneous effects: 5

Number of patch memories: 100 (10 banks of 10)

Sampling frequency: 44.1 kHz

A/D conversion: 24-bit, 128× oversampling

D/A conversion: 24-bit, 128× oversampling

Signal Processing: 32−bit floating point & fixed point

Frequency characteristics: 20Hz – 20 kHz +1 dB, -6 dB (into 10 kΩ load)

Display: Backlit dot matrix LCD

Input: Standard mono ¼" phone jack

Rated input level: -20 dBm*

Input impedance (line): 470 kΩ

Aux in: Mini stereo (⅛") phone jack

Rated Input Level: -10 dBm*

Input impedance (line): : 1kΩ

Output: Standard stereo (¼") phone jack

Maximum line output level: +2 dBm (output impedance load of 10 kΩ or more)

Maximum headphones output level: 17 mW + 17 mW (into 32Ω load)

S/N (input conversion noise): 119dB

Noise floor (residual noise): -97 dBm*

Battery type: AA size (LR6) battery x 4

Continuous battery operation time: 20 hours when using 4 AA alkaline batteries

AC adapter (optional): DC 9V center-negative, 500 mA (Zoom AD-16)

USB: Firmware update, bus power

External Dimensions: 154.8mm(D) x 146.0mm(W) x 43.0mm (H)

Weight: 380g (without batteries)

* Note: 0 dBm = 0.775 Vrms
